productdif.com SMT assembly places components directly onto the surface of printed circuit boards, enabling higher component density and faster production rates compared to THT assembly, which involves inserting leads through holes in the PCB. SMT offers improved electrical performance and better suitability for automated processes, whereas THT provides stronger mechanical bonds ideal for components subject to mechanical stress. Choosing between SMT and THT depends on factors like component size, production volume, and the mechanical demands of the final product.
Table of Comparison
| Feature | SMT Assembly (Surface-Mount Technology) | THT Assembly (Through-Hole Technology) |
|---|---|---|
| Component Mounting | Components mounted on PCB surface | Components lead inserted through PCB holes |
| Assembly Speed | High-speed automated placement | Slower, often manual or wave soldering |
| Design Density | Supports high-density and compact designs | Lower density; larger PCB area required |
| Mechanical Strength | Lower mechanical strength, suited for lighter loads | Stronger mechanical bonds; ideal for heavy components |
| Repair and Rework | More challenging due to small size and tight spacing | Easier manual rework and component replacement |
| Cost | Lower component and assembly cost at scale | Higher labor and material cost |
| Typical Applications | Consumer electronics, compact devices | Industrial equipment, connectors, power components |
Introduction to SMT and THT Assembly
Surface Mount Technology (SMT) assembly involves mounting electronic components directly onto the surface of printed circuit boards (PCBs) using automated machines, enabling higher component density and faster production rates. Through-Hole Technology (THT) assembly requires inserting component leads into drilled holes on the PCB followed by soldering, offering strong mechanical bonds ideal for heavy or high-stress components. SMT is favored for modern electronics due to miniaturization and efficiency, while THT remains essential for applications demanding durability and mechanical stability.
Key Differences Between SMT and THT Technologies
Surface Mount Technology (SMT) uses smaller, lighter components directly mounted on the PCB surface, enabling higher component density and faster automated assembly compared to Through-Hole Technology (THT), which inserts leads through PCB holes and is suited for mechanically robust applications. SMT allows for dual-sided PCB assembly, enhancing circuit complexity, while THT provides stronger mechanical connections ideal for connectors and heavy components. Thermal profiles and soldering methods also differ; SMT utilizes reflow soldering with precise temperature control, whereas THT primarily relies on wave soldering processes.
SMT Assembly Process Overview
Surface Mount Technology (SMT) assembly involves placing electronic components directly onto the surface of printed circuit boards (PCBs) using automated pick-and-place machines, enabling high-density and precise component placement. The SMT assembly process includes solder paste application, component placement, reflow soldering, and inspection, resulting in faster production cycles compared to Through-Hole Technology (THT). This method supports miniaturization and higher component counts, making it ideal for modern electronics manufacturing where efficiency and reliability are critical.
THT Assembly Process Overview
Through-Hole Technology (THT) assembly involves inserting component leads into pre-drilled holes on a printed circuit board (PCB), followed by soldering on the opposite side to secure the components. This process provides strong mechanical bonds, making it ideal for components subjected to mechanical stress or heat dissipation requirements. THT assembly is commonly used in applications requiring durability and reliability, such as connectors, large transformers, and high-power components.
Advantages of Surface Mount Technology (SMT)
Surface Mount Technology (SMT) offers significant advantages over Through-Hole Technology (THT) by enabling higher component density and smaller PCB footprints, crucial for modern compact devices. SMT improves electrical performance due to shorter lead lengths, reducing inductance and parasitic capacitance, which enhances signal integrity and high-frequency operation. Automated SMT assembly also enhances manufacturing speed and reliability, lowering production costs and minimizing human error.
Benefits of Through-Hole Technology (THT)
Through-Hole Technology (THT) assembly provides robust mechanical strength, making it ideal for components subject to physical stress or high thermal loads. Its superior anchoring capability ensures reliable connections in high-vibration environments, such as aerospace and automotive applications. THT also facilitates easier manual inspection and rework compared to Surface Mount Technology (SMT), enhancing maintenance efficiency in complex electronic systems.
Applications Best Suited for SMT Assembly
Surface Mount Technology (SMT) assembly is best suited for high-density electronic applications requiring compact, lightweight, and complex circuit designs, such as smartphones, laptops, and modern medical devices. SMT components enable automated, rapid production, making them ideal for large-scale manufacturing in consumer electronics and telecommunications equipment. High-frequency applications benefit from SMT assembly due to reduced parasitic inductance and capacitance compared to Through-Hole Technology (THT).
Ideal Use Cases for THT Assembly
Through-Hole Technology (THT) assembly excels in applications requiring strong mechanical bonds and durability, such as high-stress environments and components subject to frequent handling or mechanical wear. It is ideal for large, heavy components like transformers, connectors, and power resistors that demand robust solder joints. THT is preferred in aerospace, automotive, and industrial equipment where reliability under vibration and thermal cycling is critical.
Cost Considerations: SMT vs THT Assembly
SMT assembly generally reduces manufacturing costs due to automated placement and smaller component sizes, allowing higher production speeds and lower labor expenses. In contrast, THT assembly often incurs higher costs because of manual insertion, increased material use, and longer soldering times. Cost efficiency in SMT makes it preferable for high-volume production, while THT may still be cost-effective for prototypes or low-volume runs.
Future Trends in PCB Assembly Technologies
SMT assembly dominates modern PCB manufacturing with its miniaturization capabilities and high-speed automation, while THT assembly continues to play a role in applications demanding robust mechanical connections and higher power handling. Future trends in PCB assembly technologies emphasize hybrid solutions combining SMT and THT for optimal performance, integration of AI-driven inspection systems for defect detection, and advancements in flexible and wearable electronics requiring novel assembly techniques. Emerging materials and nano-soldering technologies are set to enhance joint reliability and enable further miniaturization beyond current SMT capabilities.

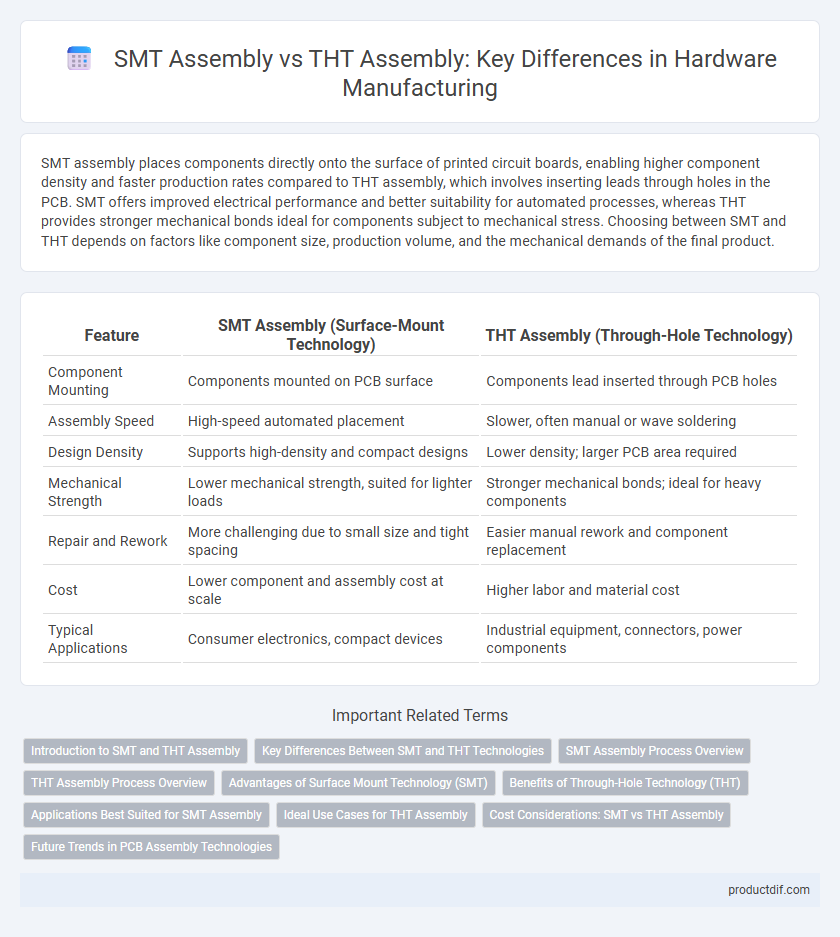

SMT assembly vs THT assembly Infographic
