productdif.com Analog multimeters offer a visual needle display, providing real-time, continuous readings that are ideal for detecting fluctuating signals and diagnosing electrical issues with precision. Digital multimeters deliver accurate numerical measurements with enhanced resolution, ease of use, and additional features like auto-ranging and data hold functions. Choosing between analog and digital multimeters depends on the need for visual signal variations or straightforward, precise digital readouts in equipment testing.
Table of Comparison
| Feature | Analog Multimeter | Digital Multimeter |
|---|---|---|
| Display | Analog needle on scale | Digital numeric LCD/LED |
| Accuracy | Lower, dependent on user reading | High, precise digital readings |
| Durability | Robust, no electronics | More sensitive to shocks |
| Measurement Range | Limited manual selection | Auto-ranging available |
| Battery Requirement | Not required for voltage/current | Required for operation |
| Response Time | Instant needle movement | Slight delay due to processing |
| User Skill Level | Requires interpretation skill | Easy, straightforward readout |
| Cost | Generally cheaper | Usually more expensive |
Introduction to Analog and Digital Multimeters
Analog multimeters measure electrical values using a needle and dial, providing continuous variable readings ideal for observing trends and fluctuations. Digital multimeters display precise numerical values on an LCD screen, offering higher accuracy and ease of use for voltage, current, and resistance measurements. Both types are essential tools in electronics, with analog models favored for analog signal monitoring and digital models preferred for precise diagnostics.
Key Differences Between Analog and Digital Multimeters
Analog multimeters display measurements through a moving needle on a scale, offering continuous data visualization and better sensitivity to voltage fluctuations. Digital multimeters provide precise numerical readings with higher accuracy, easier interface, and additional functions such as auto-ranging and data hold. Unlike analog models, digital multimeters often include advanced features like resistance, capacitance, and frequency measurement, enhancing their versatility for complex diagnostics.
Accuracy and Precision in Measurement
Digital multimeters offer higher accuracy and precision compared to analog multimeters due to their digital readout and advanced circuitry, reducing human reading errors. Analog multimeters may provide smoother needle movement useful for observing trends but are limited by parallax errors and lower resolution. For tasks requiring exact measurements, digital multimeters are preferred as they deliver consistent and reliable readings with improved sensitivity and resolution.
Ease of Use and Readability
Digital multimeters offer superior ease of use with clear, backlit LCD screens that provide precise numerical readings, minimizing the chance of human error. Analog multimeters require interpretation of needle position on a scale, which can be challenging in low-light conditions and less precise for quick measurements. Digital models often include features like auto-ranging and data hold, enhancing readability and simplifying operation for both professionals and beginners.
Durability and Build Quality Comparison
Analog multimeters typically feature robust mechanical components and a simple design, making them highly durable and resistant to rough handling in industrial environments. Digital multimeters often incorporate advanced circuitry and plastic housings, which provide precision but may be more susceptible to damage from drops or extreme conditions. High-end digital models use reinforced casings and water-resistant materials that enhance build quality and longevity, narrowing the durability gap with analog counterparts.
Cost and Affordability Factors
Analog multimeters generally have a lower initial purchase price compared to digital multimeters, making them more affordable for basic measurement tasks. However, digital multimeters offer greater accuracy and additional features that justify their higher cost for professional use. Budget constraints and specific measurement needs heavily influence the choice between these two types of multimeters in different applications.
Applications and Ideal Use Cases
Analog multimeters are ideal for measuring fluctuating signals and observing trends over time, commonly used in automotive diagnostics and vintage electronics repair. Digital multimeters provide precise, easy-to-read measurements suitable for complex troubleshooting in electrical engineering, industrial maintenance, and circuit design. Each type excels in specific environments where either real-time needle response or high accuracy and multifunctional features are required.
Advanced Features and Functionality
Digital multimeters offer advanced features such as auto-ranging, data logging, and enhanced accuracy, enabling precise measurements across voltage, current, and resistance. Analog multimeters provide a visual representation of fluctuations, which is beneficial for observing transient signals but lack automated functions and digital storage capabilities. The integration of backlit displays, auto-hold, and connectivity options in digital models further enhances their functionality for complex electrical diagnostics.
Maintenance and Calibration Requirements
Analog multimeters require frequent zero adjustments and mechanical calibration to maintain accuracy, especially due to needle wear and mechanical drift. Digital multimeters generally need less frequent calibration, benefiting from stable electronic components but require periodic verification to ensure measurement precision. Proper maintenance of both types involves regular inspection, cleaning of contacts, and adherence to manufacturer calibration intervals for reliable performance.
Choosing the Right Multimeter for Your Needs
Choosing the right multimeter depends on accuracy, durability, and ease of use. Analog multimeters offer better responsiveness for fluctuating signals and are more resistant to overloads, while digital multimeters provide higher precision, multiple functions, and easier readability. Consider the specific application, measurement range, and user skill level to select a device that meets both budget and technical requirements.

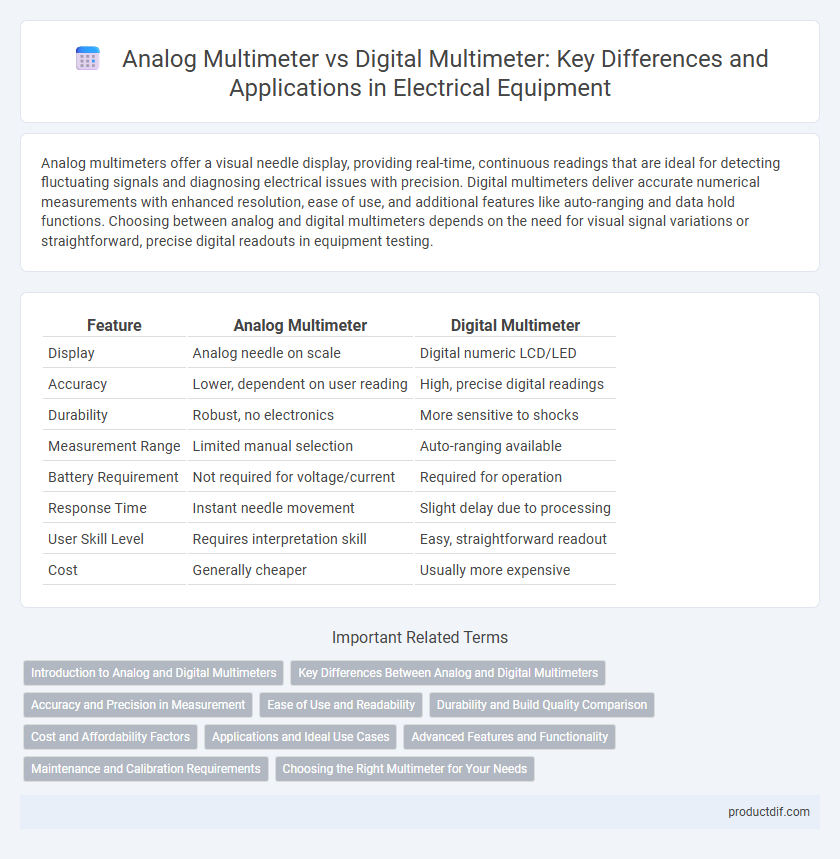

Analog multimeter vs Digital multimeter Infographic
