productdif.com RS-232 and USB are both serial communication standards used for connecting peripherals to computers, but RS-232 is an older protocol primarily designed for point-to-point serial connections with slower data transfer rates and limited cable length. USB offers higher speeds, greater flexibility with plug-and-play capabilities, power delivery, and support for multiple devices through hubs. Modern hardware increasingly favors USB due to its versatility and widespread compatibility, making RS-232 mostly suitable for legacy equipment and industrial applications.
Table of Comparison
| Feature | RS-232 | USB |
|---|---|---|
| Interface Type | Serial Communication | Universal Serial Bus |
| Data Transfer Speed | Up to 115 Kbps | Up to 40 Gbps (USB4) |
| Connector | DB9 or DB25 | Type-A, Type-B, Type-C |
| Cable Length | Up to 50 feet (15 meters) | Up to 5 meters (standard) |
| Power Delivery | No | Yes, up to 100W (USB Power Delivery) |
| Compatibility | Legacy Devices | Modern Devices, Plug and Play |
| Usage | Industrial, Modems, Serial Consoles | Storage, Peripherals, Charging |
Introduction to RS-232 and USB
RS-232 is a standard for serial communication transmission of data, widely used in computer serial ports since the 1960s, enabling asynchronous data exchange over distances up to 50 feet. USB, introduced in the mid-1990s, revolutionized peripheral connectivity with faster data transfer rates, plug-and-play capability, and power delivery over the same cable, supporting a variety of devices from keyboards to external storage. RS-232 typically uses DB9 or DB25 connectors with voltage levels from -15V to +15V, whereas USB employs standardized connectors such as Type-A and Type-C with 5V power and data signaling through differential pairs.
Historical Evolution of RS-232 and USB
RS-232, introduced in the 1960s, served as the standard for serial communication between computers and peripherals, characterized by its simple, point-to-point design and relatively low data transfer rates. USB emerged in the mid-1990s to address RS-232 limitations by offering faster data transmission, standardized connectors, and support for multiple devices on a single bus. The evolution from RS-232 to USB reflects significant advancements in hardware interface technology, emphasizing speed, ease of use, and versatility.
Technical Specifications: RS-232 vs USB
RS-232 supports data transfer rates up to 115.2 kbps with voltage levels ranging from +-3 to +-15 volts, utilizing single-ended signaling over a 25-pin or 9-pin connector. USB, particularly USB 3.0 and beyond, enables data transfer rates from 5 Gbps up to 20 Gbps with differential signaling and operates at 5 volts using a standardized 4-pin or 9-pin connector. While RS-232 uses asynchronous serial communication, USB supports asynchronous and isochronous data transfers, providing enhanced speed, power delivery, and plug-and-play functionality.
Data Transfer Speed Comparison
RS-232 supports data transfer rates up to 115.2 kbps, making it suitable for low-speed serial communication in legacy devices. USB protocols, particularly USB 3.0 and above, offer data transfer speeds ranging from 5 Gbps to 20 Gbps, enabling high-speed communication for modern peripherals. The vast difference in transfer rates highlights USB as the superior interface for bandwidth-intensive applications compared to the slower RS-232 standard.
Hardware Interface and Connector Differences
RS-232 uses a 9-pin D-subminiature connector, typically DB9, designed for serial communication with single-ended signaling up to 15 meters. USB employs a more compact, standardized 4-pin or higher connector such as USB Type-A, Type-B, or Type-C, supporting differential signaling for higher data rates and power delivery over shorter distances. The RS-232 interface is primarily for point-to-point serial communication with slower speeds, while USB supports hot-swappable, multi-device connectivity with faster data transfer and power management features.
Power Delivery Capabilities
RS-232 interfaces provide limited power delivery, typically offering only a few milliamps at low voltage, insufficient for charging or powering modern devices. USB standards, especially USB Power Delivery (USB PD), support scalable power output up to 100 watts, enabling efficient charging and operation of a wide range of electronics. The significant disparity in power capabilities makes USB the preferred choice for high-power peripherals and devices requiring substantial energy transfer.
Device Compatibility and Interoperability
RS-232 interfaces offer broad device compatibility with legacy industrial equipment and scientific instruments, supporting simple point-to-point connections without requiring complex drivers. USB provides enhanced interoperability with modern peripherals such as keyboards, mice, and storage devices, leveraging plug-and-play functionality and standardized protocols for seamless integration. Despite USB's widespread adoption, RS-232 remains crucial for interfacing with specialized hardware that lacks native USB support.
Typical Applications in Modern Hardware
RS-232 remains prevalent in industrial automation, point-of-sale systems, and legacy equipment due to its simplicity and reliability over short distances. USB dominates consumer electronics, computer peripherals, and mobile devices, offering faster data transfer, plug-and-play capabilities, and broader compatibility. Modern hardware often integrates USB for high-speed connectivity while maintaining RS-232 for specialized control and monitoring applications.
Advantages and Limitations of RS-232 vs USB
RS-232 offers simplicity and direct point-to-point communication, making it ideal for legacy industrial equipment and serial peripherals with minimal configuration. USB provides faster data transfer rates, plug-and-play functionality, and power delivery, supporting a wide range of modern devices and complex topologies. RS-232's limitations include lower speed, limited cable length (typically 15 meters), and lack of standardized hot-swapping, whereas USB's limitations involve shorter maximum cable lengths without repeaters and potential compatibility issues with older serial hardware.
Choosing the Right Interface for Your Hardware
RS-232 offers reliable, long-distance serial communication often used in industrial hardware due to its simplicity and robustness. USB provides faster data transfer rates, plug-and-play convenience, and broad compatibility, making it ideal for modern consumer electronics and peripheral devices. Selecting the right interface depends on factors such as data speed requirements, cable length, device compatibility, and environmental conditions.

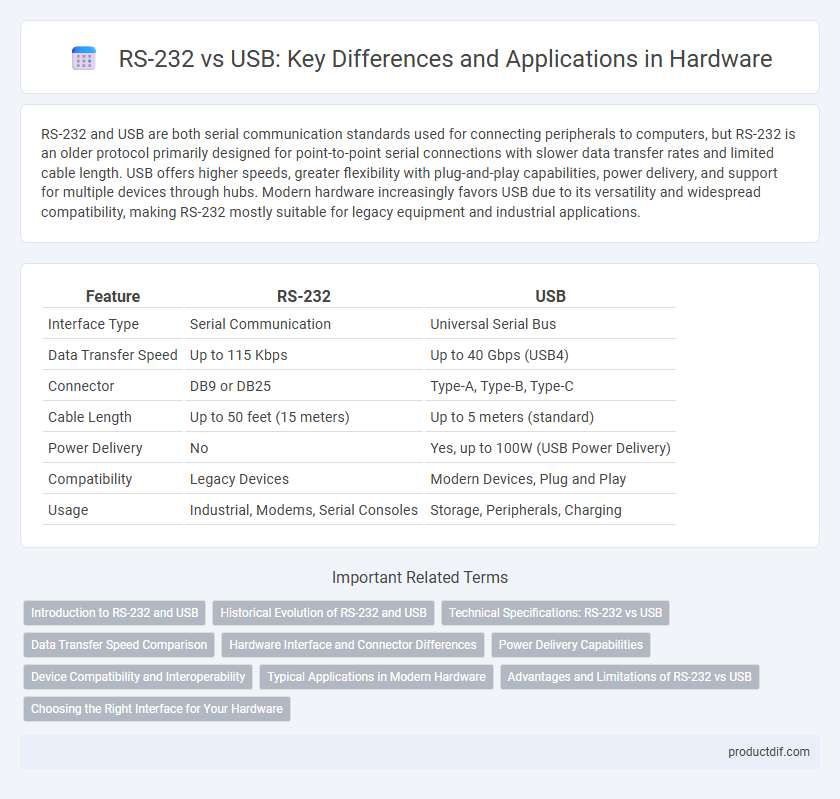

RS-232 vs USB Infographic
