productdif.com Microcontroller units (MCUs) offer integrated memory and peripherals on a single chip, making them ideal for low-power, cost-sensitive embedded applications. Microprocessor units (MPUs) provide higher processing power and support for complex operating systems, suitable for advanced computing tasks requiring greater performance and flexibility. Choosing between MCU and MPU depends on the application's need for real-time control, power efficiency, and computational complexity.
Table of Comparison
| Feature | MCU (Microcontroller Unit) | MPU (Microprocessor Unit) |
|---|---|---|
| Core | Integrated CPU with memory and peripherals | CPU only, requires external memory and peripherals |
| Memory | On-chip Flash and RAM | External DRAM and Flash required |
| Performance | Lower clock speeds (MHz range) | Higher clock speeds (GHz range) |
| Power Consumption | Low power consumption, suitable for battery-operated devices | Higher power consumption, needs more cooling |
| Applications | Embedded control, IoT devices, automotive sensors | Complex OS platforms, high-performance computing, smartphones |
| Cost | Lower cost, integrated components reduce BOM | Higher cost due to external components and complexity |
Introduction to MCU and MPU
A Microcontroller Unit (MCU) integrates a processor core, memory, and peripherals on a single chip, designed for embedded control applications with low power consumption and real-time operation. In contrast, a Microprocessor Unit (MPU) typically contains only the central processing unit and requires external components such as memory and input/output controllers, making it suitable for high-performance computing tasks. MCUs are optimized for cost-effective, compact solutions in devices like sensors and appliances, while MPUs serve in more complex systems like smartphones and computers.
Core Architecture Differences: MCU vs MPU
Microcontroller Units (MCUs) feature integrated cores optimized for real-time control with limited processing power and on-chip memory, typically based on ARM Cortex-M or proprietary architectures. Microprocessor Units (MPUs) utilize more complex cores such as ARM Cortex-A, designed for higher clock speeds, advanced out-of-order execution, and extensive cache hierarchies to support operating systems and high-performance applications. The core architecture disparity impacts power consumption, instruction set complexity, and peripheral integration, making MCUs ideal for embedded control and MPUs suitable for multimedia and computing-intensive tasks.
Processing Power and Performance
MCUs (Microcontroller Units) integrate a processor core with memory and peripherals on a single chip, offering moderate processing power optimized for real-time control and low-power applications. MPUs (Microprocessor Units) feature higher clock speeds and advanced architectures like multi-core designs, delivering superior performance for complex operating systems and intensive computational tasks. The processing capabilities of MPUs greatly surpass MCUs, making MPUs suitable for applications requiring substantial data processing and multitasking.
Memory Capabilities in MCUs and MPUs
MCUs (Microcontroller Units) integrate on-chip memory, including Flash and SRAM, optimized for real-time control with limited capacity typically ranging from a few kilobytes to several megabytes. MPUs (Microprocessor Units) rely on external memory subsystems, supporting larger and more flexible memory configurations such as gigabytes of DRAM, enabling complex operating systems and applications. The memory architecture in MCUs ensures deterministic performance for embedded tasks, whereas MPUs provide extensive memory resources for multitasking and advanced computation.
Power Consumption: Efficiency Comparison
MCUs (Microcontroller Units) consume significantly less power than MPUs (Microprocessor Units) due to their integrated architecture and simpler processing cores, making them ideal for energy-sensitive applications like wearables and IoT devices. MPUs typically require higher power because of their complex multi-core designs and support for advanced operating systems, leading to greater energy demands. Power efficiency in MCUs is often enhanced by features such as low-power sleep modes and clock gating, which reduce consumption during idle periods.
Peripheral Integration and Connectivity
Microcontroller Units (MCUs) typically integrate a wide range of peripherals on-chip, including ADCs, DACs, timers, and communication interfaces like UART, SPI, and I2C, enabling compact and cost-effective embedded solutions. Microprocessor Units (MPUs) generally rely on external peripheral devices and controllers, offering greater flexibility and scalability for high-performance applications but increased design complexity. MCUs excel in tightly integrated connectivity options for real-time control, while MPUs support advanced networking and multimedia interfaces suitable for complex systems.
Real-Time Applications: Choosing the Right Solution
MCUs (Microcontroller Units) excel in real-time applications due to their deterministic timing and integrated peripherals, ensuring rapid response and minimal latency. MPUs (Microprocessor Units) offer higher processing power and advanced operating systems but may introduce unpredictable delays, making them less suitable for strict real-time constraints. Selecting between MCU and MPU depends on the real-time requirements, with MCUs preferred for time-critical tasks and MPUs ideal for complex processing with moderate timing demands.
Operating System Support: Bare Metal vs OS-Based
MCUs typically run on bare metal environments, enabling direct hardware control without the overhead of an operating system, which results in faster response times and predictable behavior. MPUs support full-fledged operating systems such as Linux or Android, allowing complex multitasking, advanced user interfaces, and extensive network connectivity. The choice between MCU and MPU hinges on application requirements for real-time control versus feature-rich OS functionality.
Cost Factors and Scalability
MCUs (Microcontroller Units) typically offer lower cost solutions due to integrated peripherals and memory, making them ideal for cost-sensitive, low to mid-range applications. MPUs (Microprocessor Units) demand higher investment because of advanced processing capabilities and external memory requirements, yet provide superior scalability for complex, high-performance systems. Cost efficiency in MCUs aligns with embedded control tasks, while MPUs scale effectively in multi-core configurations for demanding, scalable computing environments.
Application Use Cases: MCU vs MPU
MCUs are ideal for embedded systems requiring real-time control, low power consumption, and cost efficiency, such as home appliances, automotive controls, and IoT devices. MPUs excel in complex applications demanding high processing power, running operating systems, and multitasking capabilities, including smartphones, industrial automation, and advanced robotics. Selecting between MCU and MPU depends on application requirements like processing speed, memory size, and peripheral integration.

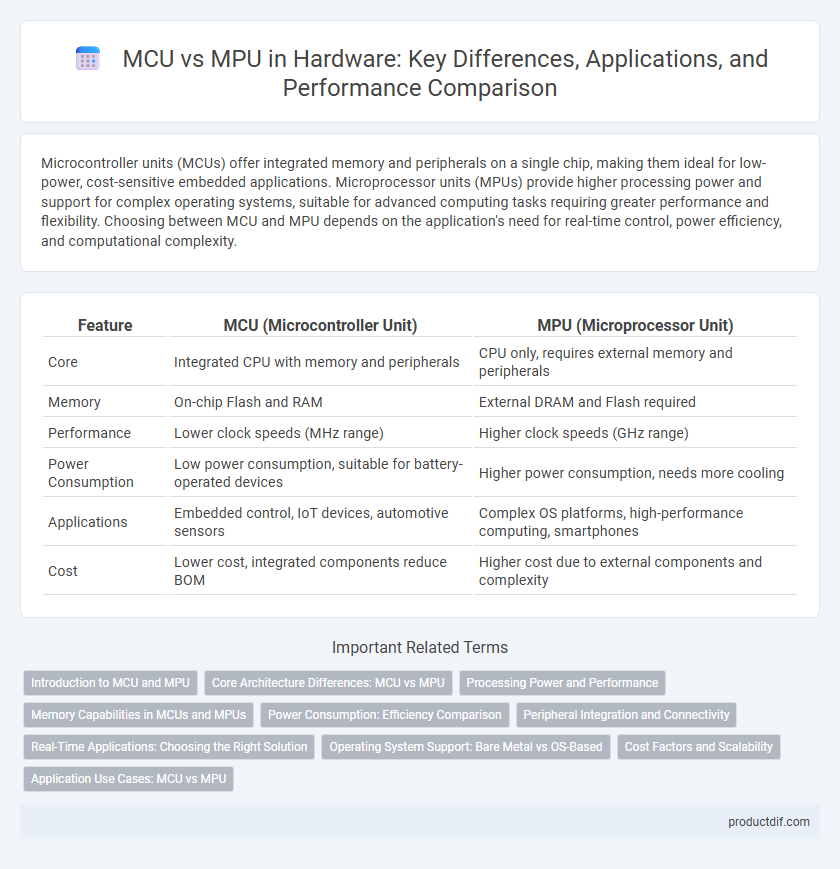

MCU vs MPU Infographic
