productdif.com DC barrel jacks offer a reliable, traditional connection for powering electronic devices, often supporting higher voltage levels and simple plug-and-play functionality. USB-C connectors provide versatile charging and data transfer capabilities with reversible design and compatibility across a wide range of modern devices. Choosing between DC barrel jack and USB-C depends on device requirements for power delivery, convenience, and technological integration.
Table of Comparison
| Feature | DC Barrel Jack | USB-C |
|---|---|---|
| Connector Type | Cylindrical, single polarity | Reversible, 24-pin |
| Power Delivery | Typically 5V to 24V, fixed voltage | Supports USB Power Delivery up to 100W (20V, 5A) |
| Data Transfer | No data capability | Supports high-speed data transfer (up to 40Gbps with Thunderbolt 3) |
| Compatibility | Common in legacy devices, basic power input | Modern devices, power, data, and video over single cable |
| Durability | Mechanical wear over time, less robust locking | Durable, reversible design reduces wear |
| Use Cases | Powering routers, cameras, and basic electronics | Smartphones, laptops, docking stations, peripherals |
| Cost | Low cost, simple manufacturing | Higher cost due to advanced technology |
Introduction to DC Barrel Jack and USB-C
DC Barrel Jack is a traditional power connector commonly used in electronic devices for delivering direct current power, featuring a cylindrical shape with varying sizes to accommodate different voltage and current requirements. USB-C is a modern, versatile connector standard supporting power delivery, data transfer, and video output through a reversible 24-pin design, enabling faster charging and wider compatibility across devices. Comparing the two, DC Barrel Jack primarily focuses on power input connection, whereas USB-C integrates multiple functionalities in a compact form factor.
Physical Design and Size Comparison
DC barrel jacks typically feature a cylindrical design ranging from 2.1mm to 5.5mm in diameter, offering simplicity and robustness for power delivery in various hardware devices. USB-C connectors measure approximately 8.4mm by 2.6mm, providing a compact, reversible design that supports higher data transfer rates and power delivery. The smaller footprint and slim profile of USB-C enable more streamlined hardware designs compared to the bulkier, less versatile DC barrel jack.
Power Delivery Capabilities
DC barrel jacks typically support lower and fixed voltage levels, often limited to 12V or 19V and currents up to 5A, suitable for traditional power adapters but lacking advanced communication features. USB-C, leveraging the USB Power Delivery (PD) protocol, can deliver up to 100W with programmable voltage levels ranging from 5V to 20V and currents up to 5A, enabling dynamic power negotiation tailored to device requirements. This adaptability makes USB-C a more versatile and future-proof connector for modern hardware demanding efficient and safe power delivery.
Compatibility with Devices
DC barrel jacks are widely compatible with various older and specialized hardware devices such as routers, monitors, and external hard drives, typically supporting higher voltage power requirements. USB-C connectors offer universal compatibility across modern laptops, smartphones, tablets, and peripherals, allowing power delivery, data transfer, and video output in a single port. The evolving USB-C standard facilitates fast charging and seamless device interoperability, whereas DC barrel jacks remain favored for dedicated power connections with consistent voltage specifications.
Voltage and Current Specifications
DC barrel jacks typically support voltages from 5V to 24V and currents up to 5A, making them suitable for higher power applications. USB-C connectors deliver a default 5V and can supply up to 3A, with USB Power Delivery (PD) allowing dynamic voltage scaling from 5V to 20V and currents up to 5A. The adjustable voltage and current capabilities of USB-C offer greater versatility compared to fixed DC barrel jacks, especially in modern portable electronics.
Safety and Reliability Considerations
DC barrel jacks offer a robust and secure connection for power delivery, minimizing the risk of accidental disconnection and electrical shorts due to their sturdy design and polarized connectors. USB-C ports provide versatile power delivery with built-in overvoltage and thermal protection protocols, enhancing device safety but requiring careful adherence to cable and charger standards to ensure reliability. Choosing between DC barrel jacks and USB-C involves evaluating device power requirements, expected usage environments, and compliance with safety certifications like UL or IEC standards.
Ease of Use and User Experience
DC Barrel Jacks offer a straightforward plug-and-play design favored for its simplicity and reliable power delivery in hardware applications, but they often lack reversibility, which can lead to incorrect connections. USB-C connectors provide enhanced ease of use due to their reversible design, faster data transfer, and integrated power delivery capabilities, improving overall user experience in modern devices. The seamless plug orientation and universal compatibility of USB-C make it a preferred choice for consumer electronics, reducing cable clutter and connection errors.
Cost Analysis: DC Barrel Jack vs USB-C
DC Barrel Jacks generally offer a lower initial cost due to their simple design and widespread availability, making them cost-effective for basic power delivery applications. USB-C connectors, while more expensive upfront, provide enhanced functionality with reversible plug orientation, higher power delivery up to 100W, and data transfer capabilities that can reduce the need for additional components. Over time, USB-C's versatility can lead to cost savings in multi-purpose devices despite the higher manufacturing expenses compared to traditional DC Barrel Jacks.
Future Trends in Power Connectors
USB-C is rapidly becoming the preferred power connector due to its universal compatibility, higher power delivery capabilities up to 100W, and support for data transfer and video output. DC barrel jacks, while still common in legacy devices, are gradually being phased out as they lack the versatility and efficiency of USB-C technology. Industry trends indicate a shift towards USB-C standardization in consumer electronics, driven by regulatory mandates and consumer demand for faster, reversible, and multifunctional connectors.
Choosing the Right Connector for Your Hardware Project
Selecting the appropriate connector for your hardware project depends on power requirements and data transfer needs. DC barrel jacks provide a reliable, high-current power connection ideal for devices requiring stable voltage without data transmission. USB-C offers versatile power delivery up to 100W and supports fast data communication, making it suitable for compact, multifunctional devices needing both power and data connectivity.

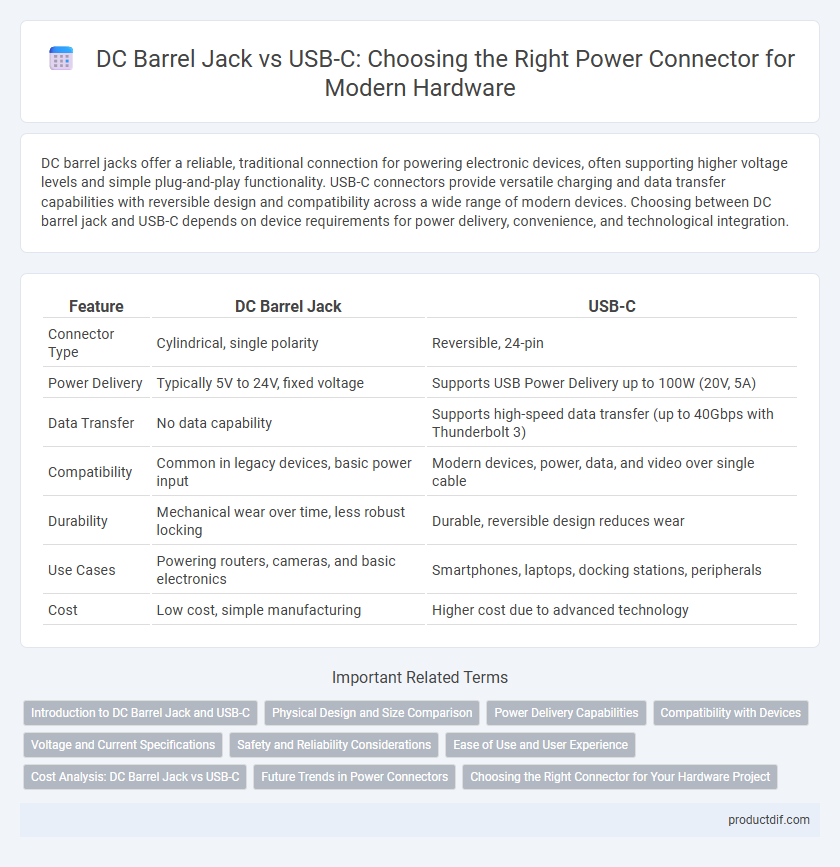

DC Barrel Jack vs USB-C Infographic
