productdif.com Bluetooth 5.0 offers higher data transfer speeds and longer range compared to Zigbee, making it suitable for real-time data transmission in hardware pet devices. Zigbee excels in low power consumption and supports large mesh networks, ideal for seamless connectivity in multi-device smart pet ecosystems. Choosing between Bluetooth 5.0 and Zigbee depends on whether priority lies in speed and range or energy efficiency and network scalability.
Table of Comparison
| Feature | Bluetooth 5.0 | Zigbee |
|---|---|---|
| Frequency Band | 2.4 GHz ISM | 2.4 GHz ISM (also 868 MHz & 915 MHz) |
| Range | Up to 240 meters (line of sight) | Up to 100 meters (line of sight) |
| Data Rate | Up to 2 Mbps | Up to 250 kbps |
| Network Topology | Point-to-point, Mesh (via Bluetooth Mesh) | Mesh |
| Power Consumption | Low, optimized for intermittent data | Very Low, optimized for continuous sensor networks |
| Primary Use Case | Consumer devices, audio, beaconing | Home automation, industrial IoT sensor networks |
| Security | AES-128 encryption, Secure Connections | AES-128 encryption, Network-level security |
| Standardization | Bluetooth SIG | Zigbee Alliance / Connectivity Standards Alliance |
Overview of Bluetooth 5.0 and Zigbee
Bluetooth 5.0 operates in the 2.4 GHz ISM band offering data rates up to 2 Mbps with improved range and energy efficiency compared to previous versions. Zigbee, also using the 2.4 GHz frequency band, emphasizes low power consumption and mesh networking capabilities for reliable, scalable device communication. Bluetooth 5.0 excels in faster data transfer and broader compatibility, while Zigbee prioritizes robust low-latency connections in dense IoT environments.
Key Differences Between Bluetooth 5.0 and Zigbee
Bluetooth 5.0 offers a maximum data rate of 2 Mbps and a range up to 240 meters with a focus on rapid device pairing and wide compatibility, ideal for audio streaming and mobile connectivity. Zigbee operates at lower data rates around 250 kbps but supports mesh networking with extended battery life, making it suitable for smart home automation and IoT sensor networks. Bluetooth 5.0 emphasizes high-speed data transfer with broad device support, while Zigbee prioritizes low power consumption, scalability, and robust multi-node communication.
Range and Coverage Capabilities
Bluetooth 5.0 offers a maximum range of up to 240 meters in open spaces, making it suitable for mid-range device communication, while Zigbee typically supports ranges up to 100 meters per hop but excels in mesh networking, extending overall coverage through device-to-device relays. Zigbee's mesh topology enables robust, scalable networks ideal for smart home and industrial IoT applications, whereas Bluetooth 5.0 is optimized for point-to-point or star network configurations. The choice between Bluetooth 5.0 and Zigbee depends on whether long-range, direct coverage or extensive, multi-hop network coverage is prioritized.
Data Transfer Speed Comparison
Bluetooth 5.0 offers a maximum data transfer speed of up to 2 Mbps, making it suitable for high-bandwidth applications such as audio streaming and file transfers. Zigbee, on the other hand, operates at speeds up to 250 Kbps, prioritizing low power consumption and reliable mesh networking over raw data throughput. This significant speed difference positions Bluetooth 5.0 as a better choice for fast data exchange, while Zigbee excels in low-speed, low-power IoT device communication.
Power Consumption and Battery Life
Bluetooth 5.0 features improved power efficiency through low energy (BLE) technology, enabling devices to maintain longer battery life during intermittent data transmissions. Zigbee is specifically designed for ultra-low power consumption in mesh networks, allowing batteries to last for several years in sensor and automation applications. When prioritizing battery longevity, Zigbee generally outperforms Bluetooth 5.0 by supporting extended device uptime with minimal energy use.
Network Topology and Scalability
Bluetooth 5.0 offers star topology primarily, connecting devices directly to a central hub, which limits network scalability to around 7 active connections per piconet but supports multiple piconets for expanded networks. Zigbee utilizes a mesh topology, enabling devices to connect indirectly through intermediate nodes, significantly enhancing scalability to thousands of nodes with reliable self-healing and extended range. This makes Zigbee more suitable for large-scale IoT deployments requiring extensive device interconnectivity and robust network resilience.
Security Features: Bluetooth 5.0 vs Zigbee
Bluetooth 5.0 utilizes AES-128 encryption at the link layer and supports Secure Simple Pairing (SSP) to enhance device authentication and data confidentiality. Zigbee also employs AES-128 encryption but implements a more robust network-layer security model with centralized trust centers for key distribution and management. While Bluetooth 5.0 focuses on user-friendly secure connections, Zigbee offers granular control over network access and resilience against attacks through its hierarchical security architecture.
Compatibility with Smart Devices
Bluetooth 5.0 offers broad compatibility with most smartphones, tablets, and laptops due to its widespread adoption in consumer electronics, supporting seamless integration with various smart home devices. Zigbee, designed specifically for low-power, mesh-networking applications, is widely compatible with home automation systems like Philips Hue and Amazon Echo Plus, providing reliable communication among smart bulbs, sensors, and switches. The choice between Bluetooth 5.0 and Zigbee depends on device ecosystem requirements, where Bluetooth excels in direct device connectivity and Zigbee excels in scalable, interconnected smart device networks.
Cost and Implementation Considerations
Bluetooth 5.0 offers lower implementation costs due to widespread chipset availability and simpler integration with existing devices, making it ideal for consumer electronics. Zigbee requires more complex network setup and specialized hardware, increasing initial deployment expenses but providing better scalability for large-scale IoT networks. Cost considerations should balance device quantity, network size, and specific application requirements when choosing between Bluetooth 5.0 and Zigbee.
Choosing the Right Protocol for Your Hardware Products
Bluetooth 5.0 offers high data transfer rates up to 2 Mbps and extended range of approximately 240 meters, making it ideal for applications requiring fast, reliable connectivity like audio devices and smartphones. Zigbee operates on low power with mesh networking capabilities, supporting thousands of nodes, which is optimal for smart home automation and industrial sensor networks demanding long battery life and scalability. Selecting the right protocol depends on hardware needs, balancing data speed, power consumption, network size, and environmental factors to ensure efficient wireless communication.

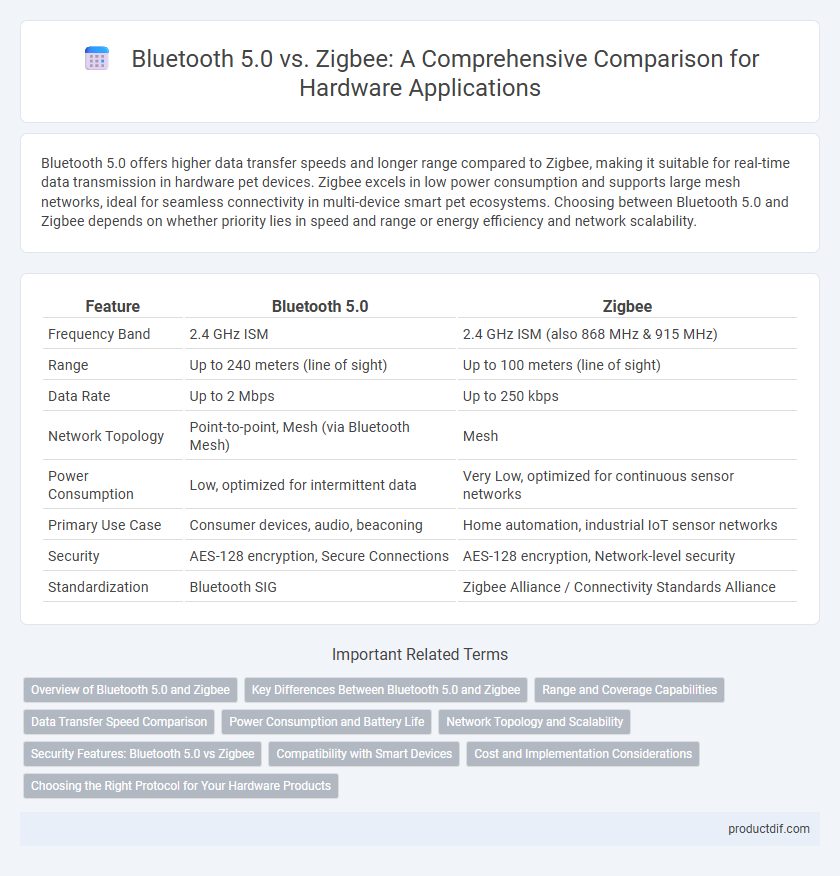

Bluetooth 5.0 vs Zigbee Infographic
