productdif.com HDMI provides broad compatibility with most consumer electronics, making it ideal for TVs and home entertainment systems. DisplayPort supports higher resolutions and refresh rates, which benefits gaming monitors and professional displays. Choosing between HDMI and DisplayPort depends on the specific device requirements and intended use.
Table of Comparison
| Feature | HDMI | DisplayPort |
|---|---|---|
| Maximum Resolution | 8K at 60Hz (HDMI 2.1) | 8K at 60Hz or 4K at 120Hz (DisplayPort 1.4/2.0) |
| Maximum Bandwidth | 48 Gbps (HDMI 2.1) | 80 Gbps (DisplayPort 2.0) |
| Audio Support | Up to 32 audio channels, Dolby Atmos, DTS:X | Up to 32 audio channels, Multi-stream audio |
| Connector Types | Standard, Mini HDMI, Micro HDMI | Standard, Mini DisplayPort |
| Adaptive Sync | Supports HDMI VRR (Variable Refresh Rate) | Supports AMD FreeSync, NVIDIA G-Sync |
| Use Case | Home entertainment, TVs, consoles | PC monitors, high-performance gaming, professional displays |
| Compatibility | Widely supported across consumer electronics | Primarily PC and workstation devices |
| Other Features | CEC for device control, Ethernet channel | Multi-Stream Transport (MST), daisy-chaining |
HDMI vs DisplayPort: Key Differences Explained
HDMI and DisplayPort differ primarily in their applications and performance capabilities, with HDMI widely used in consumer electronics for audio and video transmission, supporting up to 48Gbps bandwidth and 8K resolution at 60Hz in its latest version. DisplayPort, favored in computing and professional environments, offers higher bandwidth of up to 80Gbps in DisplayPort 2.0, enabling 16K resolution at 60Hz and superior multi-display support with daisy-chaining. HDMI excels in compatibility with TVs and home theater systems, while DisplayPort is preferred for gaming monitors and multi-monitor setups due to its higher refresh rate support and adaptive sync technologies like FreeSync and G-Sync.
Video and Audio Quality: HDMI vs DisplayPort
DisplayPort supports higher maximum resolutions up to 8K at 60Hz and refresh rates faster than HDMI 2.0, making it ideal for ultra-high-definition monitors and gaming setups. HDMI 2.1 offers comparable 8K support and enhanced audio return channel (eARC) capabilities for superior multi-channel audio quality in home theater systems. Both interfaces provide lossless audio formats like Dolby TrueHD and DTS-HD Master Audio, but DisplayPort delivers lower latency and better synchronization for professional video editing and streaming.
Compatibility with Devices: HDMI or DisplayPort?
HDMI offers broader compatibility with consumer electronics such as TVs, gaming consoles, and Blu-ray players, making it the preferred choice for home entertainment setups. DisplayPort is commonly found in computer monitors and high-performance GPUs, excelling in support for higher refresh rates and multiple displays. Choosing between HDMI and DisplayPort depends on device compatibility and specific use cases, with HDMI favored for multimedia devices and DisplayPort for advanced computing environments.
Supported Resolutions and Refresh Rates
DisplayPort supports higher maximum resolutions and refresh rates, with capabilities up to 8K at 60Hz and 4K at 144Hz, making it ideal for high-performance gaming and professional displays. HDMI 2.1 supports resolutions up to 10K and refresh rates up to 120Hz, primarily optimized for home entertainment and consumer electronics. Both interfaces support 4K at 60Hz as a baseline, but DisplayPort offers more flexibility in multi-monitor setups and variable refresh rates for smoother visuals.
Gaming Performance: HDMI vs DisplayPort
DisplayPort offers higher bandwidth than HDMI, supporting higher refresh rates and resolutions crucial for competitive gaming, such as 4K at 144Hz or 8K at 60Hz. HDMI 2.1 narrowed the gap by also supporting 4K at 120Hz and variable refresh rate (VRR) technologies, enhancing smoothness and reducing screen tearing. Gamers seeking ultra-fast response times and multi-monitor setups often prefer DisplayPort due to its daisy-chaining capabilities and superior adaptive sync support.
Cable Length and Signal Integrity Comparison
DisplayPort cables maintain signal integrity over longer distances, typically up to 3 meters for full 4K resolution at 60Hz without signal degradation, whereas HDMI cables generally support similar resolutions only up to 2-3 meters before experiencing potential latency or quality loss. Active HDMI cables or signal boosters are often required to extend length beyond 5 meters while preserving image and audio fidelity. DisplayPort's superior support for daisy-chaining and higher bandwidth over extended cable lengths makes it preferable for multi-monitor setups demanding consistent signal quality.
Features: Audio Return Channel, Ethernet, and More
HDMI supports Audio Return Channel (ARC) and Enhanced Audio Return Channel (eARC), enabling high-quality audio transfer between devices without additional cables, while DisplayPort lacks native ARC functionality but offers multi-stream transport (MST) for daisy-chaining multiple monitors. HDMI includes an Ethernet channel for network connectivity through a single cable, a feature absent in DisplayPort, which prioritizes high bandwidth for video and data transmission. Both interfaces support high-resolution audio and video formats, but HDMI is more versatile for home entertainment setups due to integrated audio return and network capabilities.
Cost and Availability of HDMI and DisplayPort Cables
HDMI cables are generally more affordable and widely available due to their extensive use in consumer electronics like TVs and gaming consoles. DisplayPort cables tend to be slightly more expensive but are favored in professional and high-performance PC setups for their superior bandwidth and multi-monitor support. Both cable types are broadly accessible in electronics stores and online, but HDMI's market saturation ensures better pricing and easier procurement for most users.
Future-Proofing: HDMI 2.1 vs DisplayPort 2.0
HDMI 2.1 supports resolutions up to 10K at 60Hz and features enhanced eARC, variable refresh rate (VRR), and dynamic HDR, making it ideal for next-gen gaming consoles and media devices. DisplayPort 2.0 offers higher bandwidth up to 80 Gbps, enabling 16K resolution at 60Hz or multiple 4K displays with HDR, making it more suitable for future high-performance PCs and professional setups. Both standards push the boundaries of video and audio transmission, but DisplayPort 2.0's superior bandwidth ensures greater scalability for emerging display technologies.
Which Should You Choose: HDMI or DisplayPort?
DisplayPort supports higher refresh rates and resolutions, making it ideal for gaming and professional monitors requiring 4K at 144Hz or better performance. HDMI is more common on TVs and consumer electronics, with broad compatibility and support for audio return channel (ARC) and Consumer Electronics Control (CEC). Choose DisplayPort for PC setups prioritizing high resolution and refresh rate, while HDMI suits home entertainment systems and devices emphasizing audio-video synchronization.

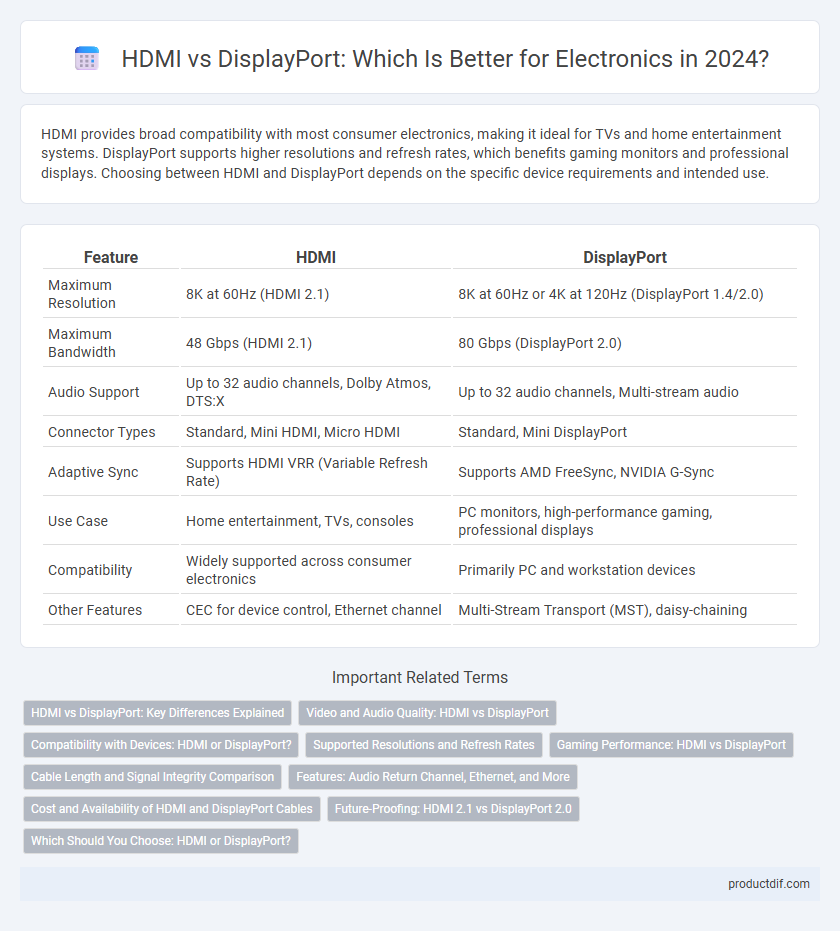

HDMI vs DisplayPort Infographic
