productdif.com Voltage regulation maintains a constant voltage level despite variations in load current or input voltage, ensuring stable power delivery to electronic circuits. Current regulation controls the current to a fixed value regardless of changes in load resistance or supply voltage, protecting components from excessive current. Both techniques are essential for designing reliable power supplies and ensuring optimal performance in electronic devices.
Table of Comparison
| Feature | Voltage Regulation | Current Regulation |
|---|---|---|
| Definition | Maintains constant output voltage despite load or input variations | Maintains constant output current regardless of load or voltage changes |
| Primary Use | Power supplies, voltage stabilizers, batteries | LED drivers, battery chargers, current sources |
| Key Parameter | Output Voltage (V) | Output Current (I) |
| Application Example | CPU power supply, voltage regulators (e.g., LM7805) | LED lighting circuits, constant current drivers |
| Control Method | Adjusts current to keep voltage steady | Adjusts voltage to keep current steady |
| Performance Metric | Voltage Regulation Accuracy (%) | Current Regulation Accuracy (%) |
| Typical Components | Linear regulators, switching regulators | Current mirrors, transistor current regulators |
Understanding Voltage Regulation in Electronics
Voltage regulation in electronics ensures a stable output voltage despite variations in input voltage or load conditions, which is crucial for protecting sensitive components and maintaining circuit performance. It often utilizes devices like voltage regulators, zener diodes, and feedback control systems to maintain constant voltage levels. Effective voltage regulation improves the reliability and efficiency of electronic circuits by preventing voltage fluctuations that could cause malfunction or damage.
Basics of Current Regulation Explained
Current regulation maintains a constant current flow regardless of voltage fluctuations, ensuring stable performance in electronic circuits. Unlike voltage regulation, which stabilizes voltage levels, current regulation is essential for protecting sensitive components and controlling power delivery in applications such as LED drivers and battery chargers. Precise current regulation relies on components like current regulators, transistors, and feedback mechanisms to adjust current flow dynamically.
Key Differences Between Voltage and Current Regulation
Voltage regulation maintains a constant voltage level despite load variations by adjusting the output voltage, while current regulation ensures a stable current output regardless of changes in load impedance. Voltage regulators are typically used in power supplies to protect sensitive electronic components, whereas current regulators are essential in applications like LED driving and battery charging to prevent excess current flow. The key difference lies in their control parameters: voltage regulation targets voltage stability, while current regulation prioritizes current stability.
Applications of Voltage Regulation in Electronic Devices
Voltage regulation is crucial in electronic devices to ensure stable power supply and prevent damage from voltage fluctuations, commonly used in power adapters, voltage reference circuits, and microcontroller systems. It maintains constant voltage levels in sensitive components such as sensors, amplifiers, and communication devices to enhance performance and reliability. Applications in battery chargers, LED drivers, and voltage stabilizers rely on precise voltage regulation for optimal functionality and longevity.
When to Use Current Regulation in Circuits
Current regulation is essential in circuits requiring a constant current flow despite voltage fluctuations, such as LED drivers, battery charging, and transistor biasing. It ensures device protection and their longevity by preventing excessive current that can cause overheating or damage. Employ current regulation when precise current control is critical for performance and safety in electronic components.
Impact on Device Performance: Voltage vs. Current Regulation
Voltage regulation ensures a stable voltage supply, minimizing fluctuations that can prevent damage and enhance the accuracy of sensitive electronics. Current regulation maintains a consistent current flow, essential for devices like LEDs and batteries that require precise current to avoid overheating or degradation. The choice between voltage and current regulation directly impacts device longevity, energy efficiency, and overall performance in electronic circuits.
Voltage Regulation Techniques and Technologies
Voltage regulation techniques in electronics primarily involve maintaining a constant output voltage despite variations in input voltage or load conditions, utilizing methods such as linear regulators, which offer low noise and precise output but lower efficiency, and switching regulators, known for high efficiency and versatility in DC-DC conversion. Advanced technologies include low dropout regulators (LDOs) for minimal input-output voltage differential and digital voltage regulators that leverage microcontroller feedback for dynamic adjustment and improved performance. Hybrid approaches combining linear and switching regulation optimize both efficiency and output quality, making them essential in powering sensitive electronics and complex circuits.
Current Regulation Methods in Electronic Applications
Current regulation methods in electronic applications primarily involve using components such as constant current regulators, current mirrors, and feedback-controlled amplifiers to maintain stable current flow despite load variations. Techniques like using shunt or series regulators and employing pulse-width modulation (PWM) in switching regulators ensure precise current control crucial for LED driving, battery charging, and transistor biasing. Advanced current regulation enhances device performance by preventing overcurrent conditions and improving energy efficiency in sensitive circuit designs.
Common Challenges in Voltage and Current Regulation
Voltage regulation and current regulation both face challenges such as maintaining stability under varying load conditions and minimizing transient response times. Common issues include dealing with noise interference, heat dissipation in components, and ensuring precision in feedback control loops to prevent oscillations. Effective design often requires balancing these factors to achieve reliable and efficient performance in electronic circuits.
Choosing the Right Regulation Method for Your Electronic Project
Choosing the right regulation method for your electronic project depends on the specific voltage and current requirements of your circuit. Voltage regulation ensures a stable voltage output despite variations in input voltage or load current, ideal for sensitive microcontrollers and analog circuits. Current regulation maintains a consistent current flow, critical for LED drivers and battery charging applications, where controlling current prevents damage and extends device lifespan.

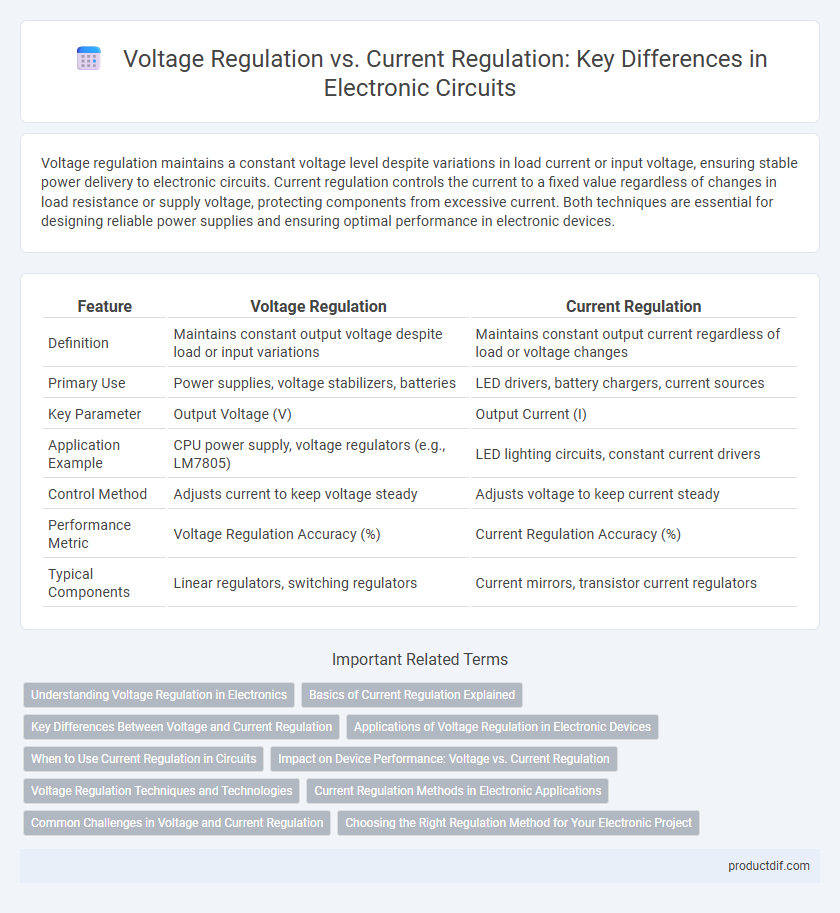

Voltage Regulation vs Current Regulation Infographic
