productdif.com DC input provides a constant voltage flow, making it ideal for devices requiring stable and consistent power, while AC input alternates voltage direction, enabling efficient transmission over long distances. Electronic devices with DC input often rely on batteries or power adapters to convert AC mains to usable DC power. Understanding the differences between DC and AC input is crucial for selecting the appropriate power source in electronics design and application.
Table of Comparison
| Feature | DC Input | AC Input |
|---|---|---|
| Voltage Stability | Constant and stable voltage | Fluctuates with frequency and load |
| Conversion Efficiency | High, minimal conversion needed | Lower, requires rectification |
| Power Source | Batteries, solar panels, DC power supplies | Wall outlets, generators, transformers |
| Noise & Interference | Lower electrical noise | Higher electromagnetic interference |
| Device Compatibility | Electronics with DC power input | Household appliances and devices designed for AC |
| Safety | Lower shock risk at low voltage | Higher shock risk due to high voltage peaks |
| Application Examples | Mobile devices, LED lighting, electric vehicles | Home power systems, industrial machinery |
Understanding DC and AC Inputs in Electronics
DC input provides a constant voltage and current flow in one direction, making it essential for electronics requiring stable and precise power, such as microprocessors and LED lighting. AC input alternates voltage polarity and current direction, suitable for devices like transformers and household appliances that rely on variable voltage for operation. Understanding the distinct characteristics of DC and AC inputs helps optimize circuit design and improve device compatibility and efficiency.
Key Differences Between DC and AC Input
DC input provides a constant voltage with a unidirectional flow of current, making it ideal for battery-powered devices and low-voltage electronics. AC input features a variable voltage that alternates direction periodically, commonly used in household power systems and large appliances to efficiently transmit energy over long distances. Key differences include the waveform shape--DC is steady and flat while AC is sinusoidal--and the ease of voltage transformation, with AC being simpler to step up or down using transformers.
Advantages of DC Input for Electronic Devices
DC input offers enhanced energy efficiency by minimizing conversion losses common with AC power sources. Electronic devices powered by DC input experience improved stability and reduced electrical noise, boosting performance and longevity. Direct current also simplifies power management in sensitive electronics, enabling consistent voltage supply and better integration with renewable energy systems like solar panels.
Benefits of AC Input in Electronic Products
AC input in electronic products offers advantages such as easier voltage transformation and efficient long-distance power transmission, reducing energy losses. Its alternating nature enables the use of transformers, allowing devices to operate at optimal voltage levels and enhancing safety. AC input systems also support standardized power grid compatibility, increasing device versatility and reliability.
Common Applications of DC vs AC Inputs
DC inputs are commonly used in battery-powered devices, solar power systems, and automotive electronics due to their stable voltage supply and efficient energy transfer. AC inputs dominate household appliances, industrial machinery, and power grid distribution because they allow easy voltage transformation and long-distance transmission with minimal energy loss. Understanding these applications helps optimize device compatibility and energy efficiency in electronic design.
Efficiency Comparison: DC Input vs AC Input
DC input systems typically offer higher efficiency compared to AC input systems due to the elimination of AC-to-DC conversion losses, which can account for 5-10% energy loss in most power supplies. Direct DC input enables more stable voltage regulation and reduces heat generation, enhancing overall system reliability. Efficiency improvements are especially significant in applications like solar power and battery-powered electronics, where minimizing energy loss is critical.
Safety Considerations with DC and AC Inputs
DC input systems require careful attention to polarity and insulation to prevent short circuits and potential fire hazards, as direct current can cause continuous arcing when contacts are opened. AC input systems benefit from zero-crossing points in the waveform, reducing the risk of arcing and improving the effectiveness of circuit breakers and fuses in interrupting current flow. Safety protocols for both inputs involve proper grounding, use of protective devices, and adherence to regulatory standards such as IEC 60950 and UL 60950 to ensure user protection and equipment reliability.
Cost Implications: Choosing DC or AC Input
Selecting DC input over AC input often reduces conversion losses and simplifies power supply design, leading to lower overall costs in electronics manufacturing. DC power sources can eliminate the need for complex rectification and filtering circuits, decreasing component count and maintenance expenses. However, AC input may offer cost advantages in applications where universal compatibility and easier voltage transformation are essential.
Compatibility Issues: DC Input vs AC Input
DC input devices require a specific polarity and voltage level, making them incompatible with AC power sources without proper conversion equipment, such as rectifiers or adapters. AC input systems rely on alternating current's cyclical nature and typically include built-in transformers for voltage regulation, which DC cannot directly utilize. Mismatching DC input devices with AC sources can cause malfunction or permanent damage due to polarity reversal and voltage spikes.
Future Trends: DC and AC Inputs in Modern Electronics
Future trends in electronics highlight the growing adoption of DC input systems due to their higher energy efficiency and compatibility with renewable energy sources like solar panels and batteries. Advances in power conversion technologies are enabling seamless integration of AC and DC inputs within smart devices and electric vehicles, optimizing performance and reducing energy loss. Emerging standards for DC input are expected to complement existing AC infrastructure, fostering hybrid power solutions for sustainable and efficient electronic applications.

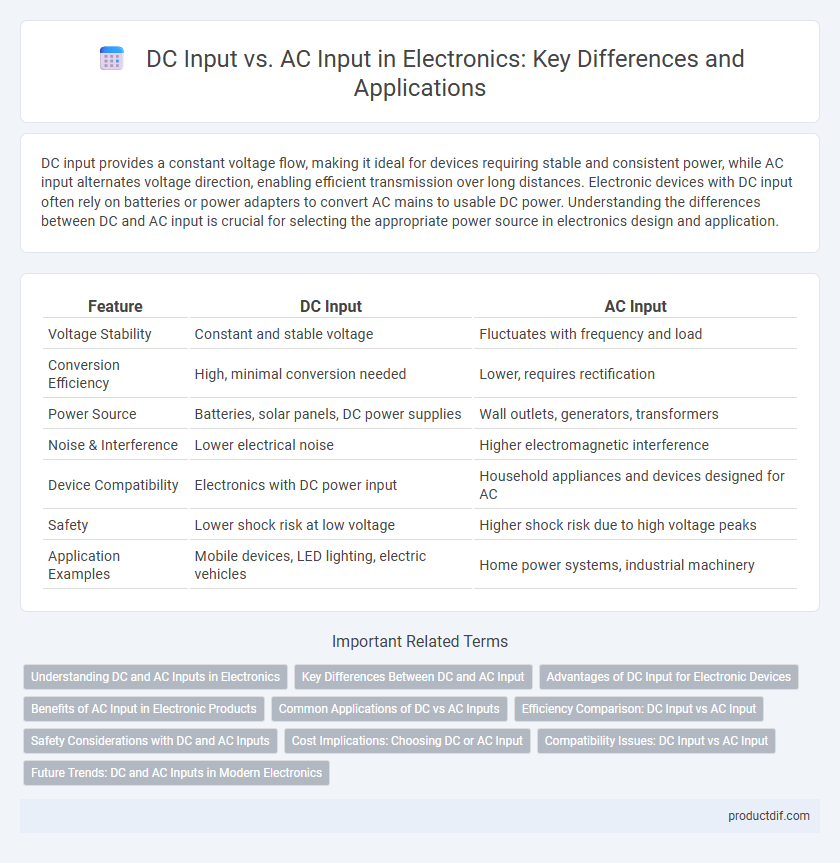

DC input vs AC input Infographic
