productdif.com DC fast charging delivers high power directly to electric vehicles, enabling significantly faster recharge times compared to Level 2 charging, which provides moderate power through a 240-volt outlet. While Level 2 chargers are ideal for overnight home or workplace charging due to their slower pace and lower cost, DC fast chargers are essential for quick top-ups during long trips. The choice between these charging methods depends on user needs, with DC fast charging maximizing convenience and Level 2 balancing speed and accessibility.
Table of Comparison
| Charging Type | DC Fast Charging | Level 2 Charging |
|---|---|---|
| Power Output | 50 kW to 350 kW+ | 3.3 kW to 19.2 kW |
| Charging Speed | 80% charge in 20-40 minutes | Full charge in 4-12 hours |
| Usage | Public fast-charging stations | Home and workplace charging |
| Connector Type | CCS, CHAdeMO | J1772 |
| Cost | Higher equipment and usage cost | Lower installation and operational cost |
| Battery Impact | Potential faster battery degradation | Gentler on battery health |
| Availability | Less widespread but growing rapidly | Widely available |
Overview of DC Fast Charging and Level 2 Charging
DC Fast Charging delivers high-voltage direct current at rates up to 350 kW, enabling electric vehicles to recharge from 20% to 80% battery capacity within 20 to 40 minutes, making it ideal for long-distance travel. Level 2 Charging operates on 240 volts, providing alternating current at up to 19.2 kW, typically adding 25 to 30 miles of range per hour, suited for overnight or workplace charging. While DC Fast Charging supports rapid energy transfer with advanced cooling systems to prevent battery degradation, Level 2 Charging offers a balance of speed and accessibility for daily driving needs.
Key Differences Between DC Fast Charging and Level 2 Charging
DC Fast Charging delivers power up to 350 kW, enabling electric vehicles to recharge from 0% to 80% in approximately 20-40 minutes, compared to Level 2 Charging that typically provides 6.6 to 19.2 kW and requires 4 to 10 hours for a full charge. DC Fast Chargers bypass the vehicle's onboard charger by supplying direct current, while Level 2 chargers supply alternating current that relies on the vehicle's onboard converter for charging. The infrastructure costs and power demands for DC Fast Charging stations are significantly higher than Level 2, making them ideal for public charging hubs, whereas Level 2 chargers are more commonly used for residential and workplace settings.
Charging Speed Comparison: DC Fast vs Level 2
DC Fast Charging delivers power at rates up to 350 kW, enabling electric vehicles to regain 80% battery capacity in as little as 20-40 minutes, whereas Level 2 Charging typically provides 6.6 to 19.2 kW, requiring 4 to 10 hours for a full charge. The substantial difference in charging speed makes DC Fast Charging ideal for long-distance travel and quick turnaround times, while Level 2 Charging suits overnight or workplace charging scenarios. Vehicle battery size, state of charge, and charger compatibility further influence the effective charging speed between the two types.
Vehicle Compatibility with DC Fast and Level 2 Chargers
Vehicle compatibility with DC fast chargers typically requires an electric vehicle equipped with a CCS (Combined Charging System) or CHAdeMO connector, supporting high voltage and current for rapid charging times. Level 2 chargers are compatible with most electric vehicles through a standard J1772 connector, offering slower charging speeds but widespread accessibility. Understanding the vehicle's onboard charger capacity is crucial, as it determines the maximum charge rate achievable on Level 2 stations, while DC fast charging bypasses the onboard charger for rapid energy transfer.
Installation Requirements: DC Fast vs Level 2 Charging Stations
DC fast charging stations require high-voltage electrical infrastructure and specialized transformers to support power levels typically ranging from 50 kW to 350 kW, often necessitating utility upgrades and significant installation costs. Level 2 charging stations operate at 240 volts with power outputs around 7 kW to 19 kW, allowing simpler installation that usually involves a dedicated circuit breaker and minimal electrical modifications. The complexity and expense of installing DC fast chargers limit their placement mainly to commercial areas and highways, while Level 2 chargers are more suitable for residential and workplace environments due to their lower installation requirements.
Cost Analysis: Equipment, Installation, and Utility Rates
DC Fast Charging stations typically involve higher upfront equipment costs ranging from $10,000 to $40,000 compared to Level 2 chargers which generally cost between $500 and $2,000. Installation expenses for DC Fast Chargers can exceed $20,000 due to necessary electrical upgrades and infrastructure, while Level 2 installations often fall below $1,500 in residential settings. Utility rates also significantly impact operational costs, with DC Fast Charging incurring higher demand charges and energy rates that can double or triple those of Level 2 charging depending on local utility tariffs.
Charging at Home vs Public Stations: Level 2 and DC Fast Options
Level 2 charging is ideal for home use, delivering 240 volts and typically adding 25 miles of range per hour, making it efficient for overnight charging. DC fast charging stations, commonly found in public locations, supply 400 volts or more and can recharge an electric vehicle up to 80% in about 30 minutes, suited for long trips or quick top-ups. Home Level 2 chargers offer convenience and cost savings, while public DC fast chargers provide rapid energy replenishment when time is limited.
Impact on Battery Health: DC Fast Charging vs Level 2
DC Fast Charging delivers high power at rates typically above 50 kW, enabling rapid battery replenishment but can generate heat that accelerates battery degradation over time. Level 2 Charging operates at 3.3 to 7.7 kW and applies a gentler current, preserving battery chemistry and extending overall battery lifespan. Manufacturers recommend balancing fast charging use with regular Level 2 sessions to mitigate capacity loss and maintain optimal battery health.
Use Case Scenarios: When to Choose DC Fast or Level 2 Charging
DC Fast Charging is ideal for long-distance travel and quick top-ups, delivering up to 80% charge in 20-40 minutes, perfect for highway stops and urgent charging needs. Level 2 Charging provides 4 to 10 times faster charging than Level 1, making it suitable for overnight home charging or workplace setups where vehicles can charge for several hours. Choosing between DC Fast and Level 2 depends on driving patterns, with DC Fast favored for rapid energy replenishment on the go and Level 2 best for routine, longer-duration charging sessions.
Future Trends in Electric Vehicle Charging Technologies
DC fast charging technology is rapidly evolving to deliver higher power outputs exceeding 350 kW, significantly reducing charging times and supporting next-generation electric vehicles with larger battery capacities. Level 2 charging remains essential for residential and workplace settings due to cost-effectiveness and infrastructure compatibility, with smart grid integration enhancing energy management. Emerging trends include ultra-fast chargers, wireless charging, and vehicle-to-grid (V2G) technologies, which collectively aim to optimize charging efficiency, grid stability, and user convenience.

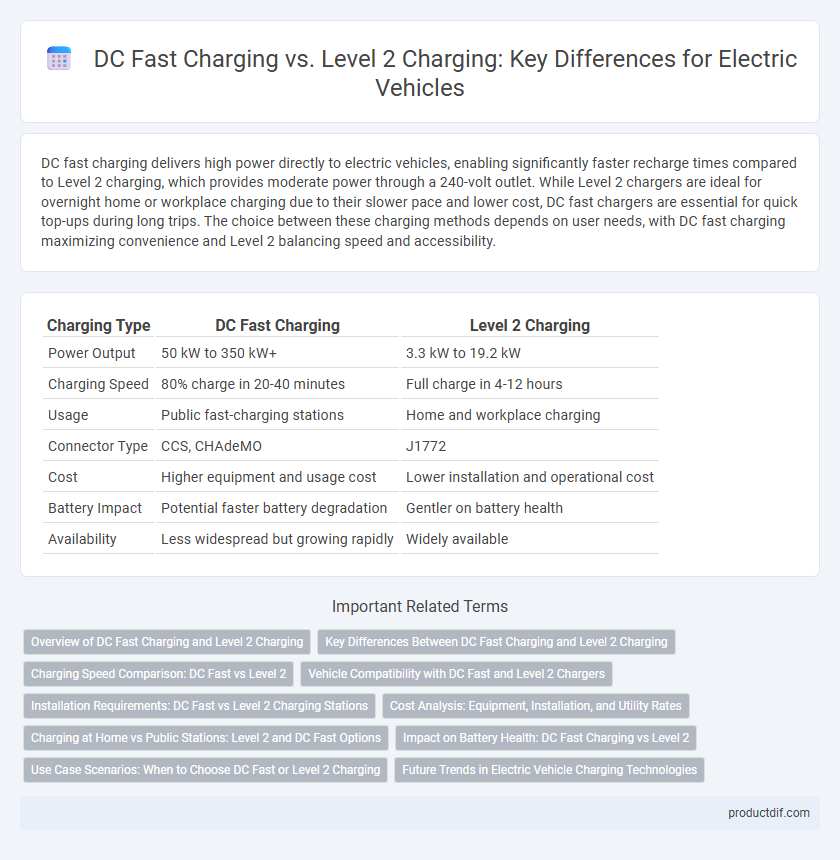

DC Fast Charging vs Level 2 Charging Infographic
