productdif.com A floor flange secures plumbing pipes to the floor, providing stability and support for vertical pipe installations. In contrast, a wall flange is designed to attach pipes to a wall, helping to maintain alignment and prevent movement in horizontal or angled plumbing runs. Choosing between a floor flange and a wall flange depends on the pipe's orientation and the specific plumbing fixture requirements, ensuring a secure and leak-free connection.
Table of Comparison
| Feature | Floor Flange | Wall Flange |
|---|---|---|
| Installation Location | Mounted on the floor around pipes | Attached to the wall around pipes |
| Primary Use | Secures pipe to floor, mostly for toilets and drains | Secures pipe to wall, common for sinks and towel bars |
| Material | Typically cast iron, brass, or PVC | Usually metal or plastic, designed for wall mounting |
| Shape and Size | Flat base with pipe collar, sized for drain pipes | Round or oval base with pipe collar, varies for wall pipes |
| Seal Type | Uses wax ring or rubber gasket | Uses rubber or foam gasket |
| Common Applications | Toilet installations, floor-mounted pipes | Wall-mounted faucets, sink drains, exposed pipes |
Introduction to Floor Flange and Wall Flange
Floor flanges and wall flanges are essential plumbing fixtures used to secure pipes to surfaces, providing stability and proper alignment. A floor flange typically mounts to the floor and supports vertical pipes, commonly in toilet installations or plumbing access points, while a wall flange attaches pipes to walls, ideal for horizontal pipe runs or fixture connections. Both types of flanges are fabricated from durable materials like brass, stainless steel, or PVC, designed to ensure leak-free sealing and structural integrity in plumbing systems.
Key Differences Between Floor Flange and Wall Flange
Floor flange is designed to secure pipes to the floor and withstand substantial weight, typically used in toilet installation and heavy plumbing fixtures, while wall flange mounts pipes to vertical surfaces, providing stability and alignment for wall-mounted sinks and faucets. Floor flanges usually have a broader base and thicker material for enhanced support, whereas wall flanges are lighter and often have mounting holes optimized for vertical surfaces. The choice between floor flange and wall flange depends on the plumbing fixture's location and load-bearing requirements.
Materials Used in Floor and Wall Flanges
Floor flanges are typically made from durable materials such as cast iron, brass, or stainless steel to withstand heavy loads and moisture exposure in flooring applications. Wall flanges often utilize materials like PVC, ABS, or chrome-plated brass, providing corrosion resistance and a polished finish for plumbing connections on vertical surfaces. Selecting the right material ensures long-lasting performance and compatibility with the specific plumbing environment.
Installation Process: Floor Flange vs Wall Flange
The installation process for a floor flange typically involves securing the flange to the subfloor beneath a toilet or pipe using screws and ensuring a wax ring seal for leak prevention. Wall flange installation requires mounting the flange directly to the wall, aligning it with the waste pipe outlet, and sealing with plumber's putty or silicone to maintain a watertight connection. Both installations demand precise alignment and secure fastening to prevent leaks and ensure stability of the plumbing fixture.
Common Applications for Floor Flanges
Floor flanges are commonly used in plumbing to secure pipes to the floor, providing stability for vertical pipe installations such as toilet waste lines and floor-mounted water supply lines. They are typically made from durable materials like brass, stainless steel, or PVC to withstand heavy foot traffic and potential moisture exposure. In contrast, wall flanges are primarily designed for horizontal pipe connections, often around sinks or shower heads.
Typical Uses of Wall Flanges
Wall flanges are typically used to secure plumbing pipes to vertical surfaces such as walls or backsplashes, providing a clean and stable connection point for fixtures like sinks, faucets, and showerheads. They help conceal pipe penetrations and prevent moisture intrusion, enhancing both aesthetics and functionality in bathroom and kitchen installations. Unlike floor flanges designed for horizontal surfaces, wall flanges are essential for maintaining pipe alignment and support in vertical mounting applications.
Strength and Durability Comparison
Floor flanges typically exhibit superior strength and durability due to their robust design meant to support heavy loads and withstand floor-level stress. Wall flanges, while durable, are generally constructed for lighter applications and face less direct pressure, making them less resistant to heavy impact or weight. Materials like cast iron or heavy-duty steel enhance floor flange durability, whereas wall flanges often use lighter metals or plastic, affecting their longevity under stress.
Cost Considerations: Floor Flange vs Wall Flange
Floor flanges typically cost more than wall flanges due to their increased material requirements and structural strength needed to support plumbing pipes on flooring surfaces. Wall flanges tend to be less expensive as they cover pipe protrusions on vertical surfaces, requiring less robust materials and simpler installation. Budgeting for plumbing projects should account for these cost differences, especially when multiple flanges are needed for secure pipe fittings.
Maintenance and Longevity Factors
Floor flanges typically offer greater durability due to their secure installation on stable surfaces, reducing the risk of leaks and damage over time. Wall flanges may require more frequent inspections and maintenance to prevent water seepage and corrosion, especially in high-moisture environments. Choosing high-quality materials like brass or stainless steel enhances longevity and minimizes the need for repairs in both floor and wall flange applications.
Choosing the Right Flange for Your Plumbing Project
Choosing the right flange for your plumbing project depends on the location and type of pipe installation. Floor flanges provide a secure base for pipes mounted on floors, ensuring stability and proper alignment, while wall flanges are designed to support pipes that connect through or run along walls, offering a clean and flush finish. Evaluating the specific plumbing configuration and the material compatibility of flanges with your pipes ensures a durable and leak-free system.

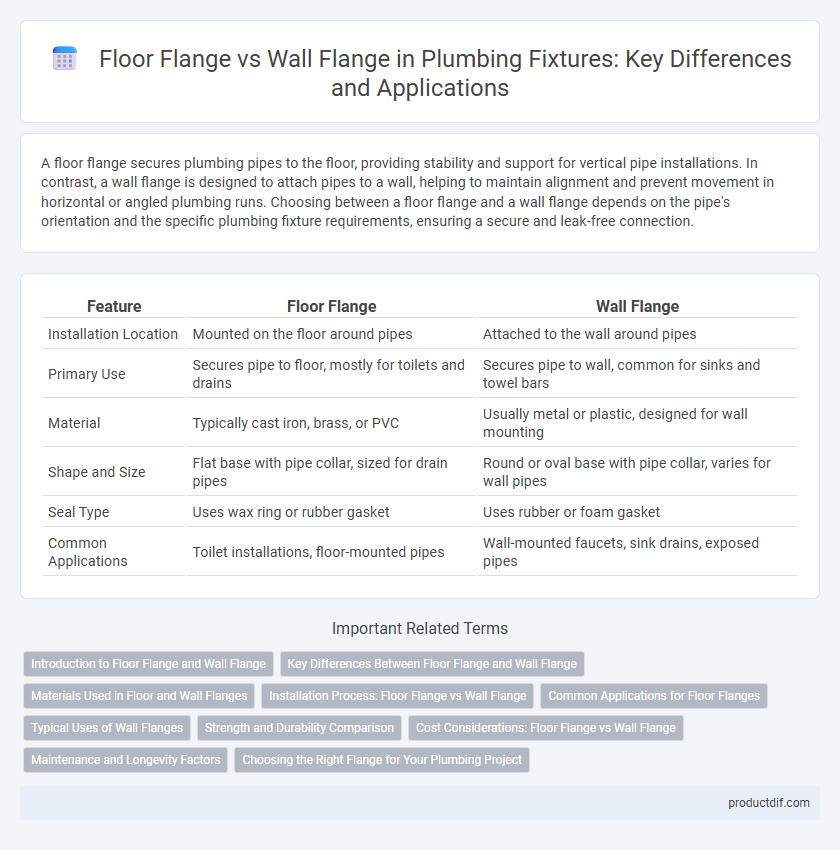

floor flange vs wall flange Infographic
