productdif.com Stratocaster wiring typically features three single-coil pickups wired with a five-way selector switch, offering a bright, versatile tone with distinct pickup combinations. Les Paul wiring usually involves two humbucker pickups with a three-way toggle switch, providing a warmer, thicker sound and independent volume and tone controls for each pickup. These wiring differences significantly influence the guitars' tonal capabilities and playing styles.
Table of Comparison
| Feature | Stratocaster Wiring | Les Paul Wiring |
|---|---|---|
| Pickup Configuration | Three single-coil pickups | Two humbucker pickups |
| Switch Type | 5-way selector switch | 3-way toggle switch |
| Volume Control | One master volume | Separate volume controls for each pickup |
| Tone Controls | Two tone knobs (middle and neck pickups) | Separate tone controls for each pickup |
| Wiring Style | Standard single-coil wiring with five distinct positions | Series wiring of humbuckers with individual controls |
| Common Sounds | Bright, crisp, and versatile tones | Warm, thick, and powerful tones |
| Typical Use | Funk, blues, rock, and pop | Rock, hard rock, and metal |
Introduction to Stratocaster and Les Paul Wiring
Stratocaster wiring features three single-coil pickups with a five-way selector switch, allowing a wide range of tonal options including the distinctive "quack" in positions 2 and 4, ideal for bright, clean sounds. Les Paul wiring uses two humbucker pickups paired with a three-way toggle switch, offering thicker, warmer tones favored in rock and blues music, with individual volume and tone controls for each pickup enhancing tonal versatility. Both wiring setups significantly influence the guitar's sound profile, shaping their iconic status in different musical genres.
Key Differences Between Stratocaster and Les Paul Circuits
Stratocaster wiring features three single-coil pickups with a 5-way selector switch, allowing for five distinct tonal combinations, whereas Les Paul wiring includes two humbuckers with a 3-way toggle switch, providing three primary pickup configurations. Stratocaster circuits typically employ a single volume and two tone controls dedicated to the neck and middle pickups, while Les Paul circuits use separate volume and tone controls for each humbucker, offering greater tonal customization. The Stratocaster's wiring delivers a brighter, more versatile sound with characteristic quack tones in positions 2 and 4, whereas the Les Paul wiring produces a thicker, warmer tone favored for sustain and heavier genres.
Tone Capacitance: Impact on Sound
Stratocaster wiring typically uses smaller tone capacitors, around 0.022uF, which preserves more high frequencies, resulting in a brighter, crisper sound. Les Paul wiring often employs larger capacitors, like 0.047uF, causing greater high-frequency roll-off and producing a warmer, thicker tone. The difference in tone capacitance critically affects the treble response and overall tonal clarity of each guitar model.
Pickup Selector Switch Comparison
Stratocaster wiring uses a 5-way pickup selector switch allowing for five distinct tonal combinations by blending three single-coil pickups, offering bright and versatile sounds ideal for genres like rock and blues. Les Paul wiring features a 3-way toggle switch controlling two humbucker pickups, providing three basic settings that emphasize thicker, warmer tones preferred in jazz and hard rock. The Stratocaster's switch delivers more nuanced tonal variety, while the Les Paul's selector prioritizes simplicity and powerful, classic output.
Potentiometer Values: 250k vs 500k
Stratocaster wiring typically uses 250k potentiometers, which produce a warmer, smoother tone by slightly rolling off high frequencies, ideal for single-coil pickups. Les Paul wiring usually employs 500k potentiometers, enhancing treble response and brightness suitable for humbuckers with higher output. Choosing between 250k and 500k pots directly affects the guitar's tonal character and output clarity.
Wiring Schematics: Standard Layouts
Stratocaster wiring schematics feature three single-coil pickups with a five-way selector switch allowing versatile tone combinations, incorporating a standard layout of one volume and two tone controls. Les Paul wiring typically employs two humbucker pickups with a three-way toggle switch, each pickup having individual volume and tone controls for more focused tonal shaping. The Strat's wiring emphasizes coil-splitting and pickup blending, whereas Les Paul wiring prioritizes simplicity and individual pickup output control.
Modifying Stratocaster Wiring for Versatility
Modifying Stratocaster wiring enhances tonal versatility by incorporating options like coil-splitting, series/parallel wiring, and additional tone controls, allowing players to achieve a broader range of sounds. Unlike the Les Paul's typical dual humbucker setup with simpler toggle switching, Stratocaster wiring customization exploits its three single-coil pickups to create unique pickup combinations and noise reduction. This flexibility makes the Stratocaster a preferred choice for musicians seeking diverse sonic possibilities within a single instrument.
Modding Les Paul Wiring for Enhanced Tone
Modding Les Paul wiring by incorporating coil-splitting and series-parallel switching drastically expands tonal versatility, allowing players to access a broader range of sounds beyond traditional humbucker warmth. Upgrading to a 50s-style wiring scheme enhances clarity and dynamic response, making the instrument more responsive to pick attack and volume adjustments. These modifications optimize the Les Paul's signal path, producing richer harmonic content and improved articulation compared to stock wiring configurations.
Common Problems and Troubleshooting Tips
Stratocaster wiring often encounters issues like scratchy pots and ground noise due to its complex 5-way selector switch, while Les Paul wiring commonly faces problems with toggle switch wear and hum from dual humbuckers. Troubleshooting Stratocaster wiring involves cleaning pots, checking solder joints, and verifying switch contacts, whereas Les Paul wiring requires inspecting the toggle switch for wear, testing coil splits, and ensuring proper grounding. Both guitars benefit from using high-quality components and periodically reflowing solder joints to maintain optimal performance and minimize electrical interference.
Choosing the Right Wiring for Your Playing Style
Stratocaster wiring offers versatile tone options with its five-way selector switch and single-coil pickups, ideal for players seeking bright, clear sounds and dynamic expression. Les Paul wiring typically features a three-way switch with dual humbuckers, delivering a thicker, warmer tone favored by rock and blues guitarists. Choosing between Stratocaster and Les Paul wiring depends on your preferred genre and desired tonal versatility, ensuring your guitar complements your playing style perfectly.

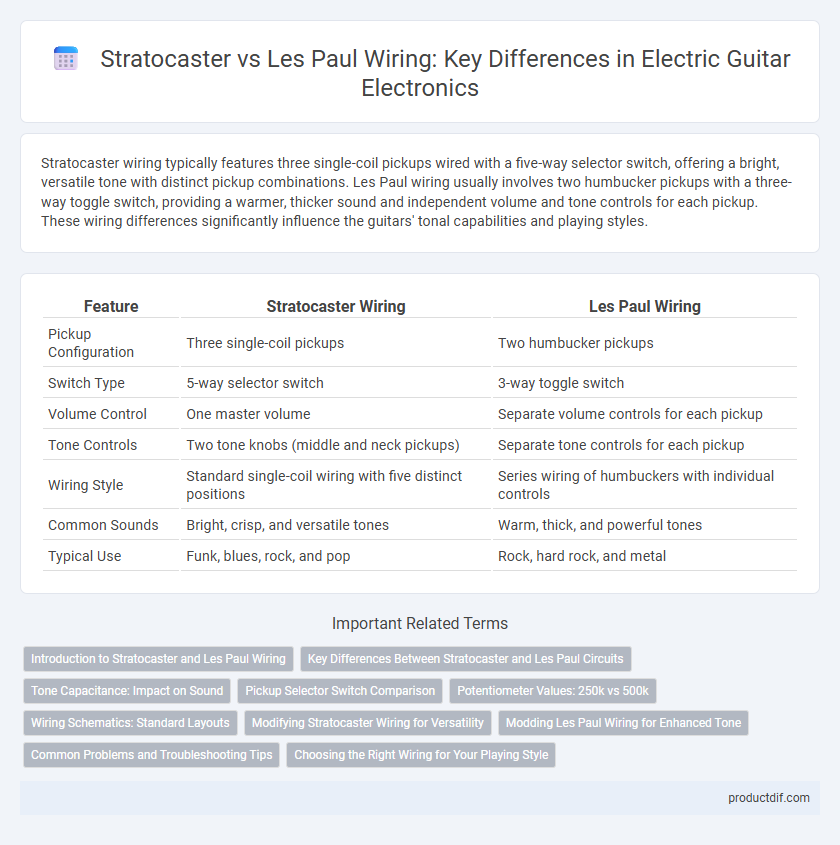

Stratocaster wiring vs Les Paul wiring Infographic
