productdif.com P-trap and S-trap are two common plumbing fixtures designed to prevent sewer gases from entering living spaces by creating a water seal. P-traps curve into a "P" shape and are widely used due to their efficient water retention and compatibility with modern venting systems. S-traps, shaped like an "S," are less effective because they can lose their water seal more easily and are often banned by plumbing codes for this reason.
Table of Comparison
| Feature | P-Trap | S-Trap |
|---|---|---|
| Design | Horizontal outlet, shaped like "P" | Vertical outlet, shaped like "S" |
| Installation | Common in wall drains, easy to install | Often connects to floor drains, harder to install |
| Code Compliance | Meets most modern plumbing codes | Often banned due to siphoning risks |
| Water Seal | Maintains water seal to block sewer gases | Prone to losing water seal, causing odors |
| Maintenance | Easier to clean with accessible trap arm | Difficult to clean, may cause frequent clogs |
| Usage | Standard in sinks, lavatories, and fixtures | Older installations, rarely used in new builds |
Introduction to P-Trap and S-Trap
P-trap and S-trap are common plumbing fixtures designed to prevent sewer gases from entering buildings by creating a water seal in drain pipes. A P-trap features a horizontal outflow pipe that connects to the drain, making it easily accessible for cleaning and maintenance, while an S-trap has a more vertical design directly connecting to the drainpipe, often causing siphoning issues. The P-trap is widely preferred in modern plumbing due to its effectiveness in maintaining the water seal and compliance with building codes.
Design Differences Between P-Trap and S-Trap
P-traps feature a horizontal discharge pipe leading to the drain, creating a water seal that effectively prevents sewer gases from entering living spaces, while S-traps have a curved, vertical pipe that leads directly into the floor drain, which can cause siphoning and loss of the water seal. The design of P-traps allows for better venting and compliance with modern plumbing codes compared to S-traps, which are often considered outdated and prone to clogs. P-traps are more commonly used in wall-mounted installations, whereas S-traps are typically found in floor-mounted fixtures, impacting their overall functionality and maintenance requirements.
How Each Trap Prevents Sewer Gas
A P-trap prevents sewer gas by creating a water seal in its curved pipe, effectively blocking harmful gases from entering living spaces. Its design includes a horizontal outlet pipe that connects to the drain line, maintaining the water barrier under varying pressure conditions. An S-trap also uses a water seal but is prone to siphoning, which can break the seal and allow sewer gases to escape through the drain.
Installation Requirements for P-Trap vs S-Trap
P-traps require a horizontal drain pipe and venting to prevent sewer gases from entering the home, making them compatible with modern plumbing codes that mandate air admittance or vent pipes. S-traps, in contrast, connect directly to the vertical drain pipe without venting, which can cause siphoning and loss of the trap seal, leading to sewer gas leaks. Due to these installation issues, S-traps are largely prohibited in new construction in many jurisdictions, whereas P-traps are the standard compliant choice for residential and commercial plumbing systems.
Common Applications: Where to Use P-Trap or S-Trap
P-traps are commonly used in modern plumbing systems beneath sinks, lavatories, and bathtubs to provide effective water seals and prevent sewer gases from entering living spaces. S-traps are typically found in older homes and are often used for floor drains or standalone fixtures where venting options are limited but are less favored due to their tendency to siphon water and cause odor problems. Plumbing codes generally mandate the use of P-traps over S-traps for most applications to ensure better venting and trap seal integrity.
Plumbing Code Compliance: P-Trap vs S-Trap
P-traps comply with modern plumbing codes by providing a reliable water seal that prevents sewer gases from entering living spaces, whereas S-traps are often prohibited due to their tendency to siphon water out of the trap, breaking the seal. Plumbing codes like the International Plumbing Code (IPC) and Uniform Plumbing Code (UPC) mandate P-traps because they maintain proper venting and trap integrity. Installing P-traps ensures code compliance and promotes effective drainage system performance, reducing the risk of health hazards from sewer gas leaks.
Maintenance and Cleaning Considerations
P-traps offer easier access for maintenance and cleaning due to their horizontal design, allowing plumbers to remove debris and clear blockages without disturbing wall structures. S-traps, with their vertical configuration, often create harder-to-reach bends, increasing the likelihood of clogs and requiring more invasive disassembly during cleaning. Regular inspection of both trap types is essential to prevent sewer gas leaks and maintain optimal drainage performance.
Advantages of P-Trap Over S-Trap
P-traps offer superior water seal retention that effectively prevents sewer gases from entering indoor spaces, unlike S-traps which are prone to siphoning and losing their seal. Their design also facilitates easier access for cleaning and maintenance, reducing clogs and plumbing issues. Building codes predominantly require P-traps because they enhance sanitation and minimize health risks associated with plumbing systems.
Limitations and Drawbacks of Each Trap
P-traps can be prone to siphoning if not vented properly, causing loss of the water seal and allowing sewer gases to enter the living space. S-traps often suffer from frequent siphoning issues, leading to trap seal failures and potential health hazards due to backflow of sewer gases, making them less compliant with modern plumbing codes. Both traps require careful installation and maintenance to prevent clogs and leaks, but P-traps are generally preferred for their superior venting capabilities and regulatory acceptance.
Choosing the Right Trap for Your Plumbing Fixture
Choosing the right trap for your plumbing fixture depends on local building codes and installation requirements, with P-traps being the most common due to their water-sealing design that prevents sewer gases from entering the home. S-traps, often found in older plumbing systems, can create siphoning issues that may lead to loss of the water seal and are generally discouraged by modern codes. Selecting a P-trap ensures compliance, effective odor control, and compatibility with a wider range of fixtures in residential and commercial applications.

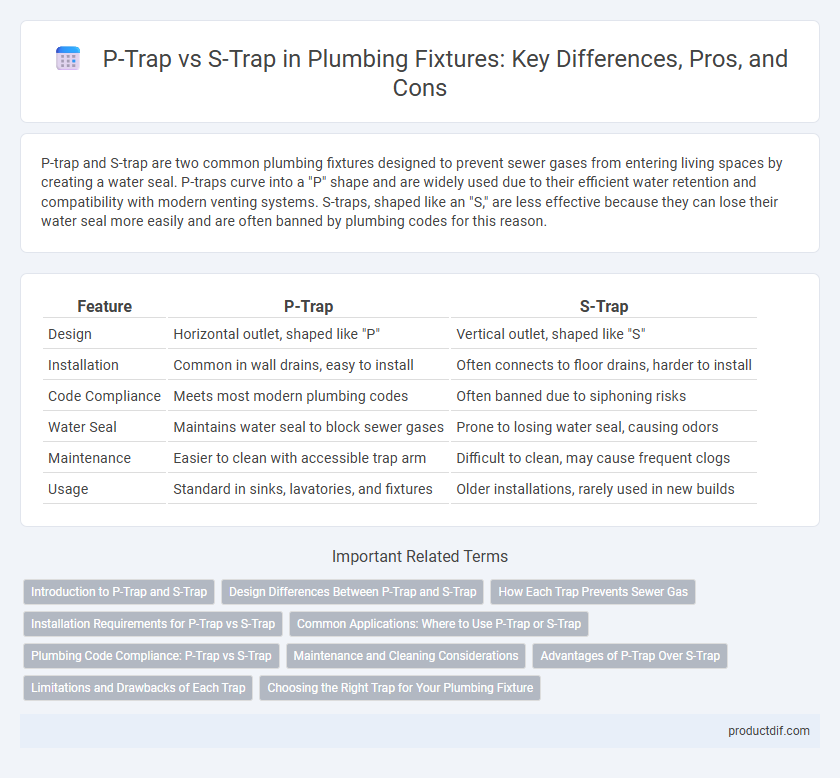

P-trap vs S-trap Infographic
