productdif.com Firmware flashing updates or reinstalls the embedded software on a device, ensuring it operates with the latest version and functionality. JTAG debugging provides a low-level interface to test, diagnose, and troubleshoot hardware by accessing the device's internal registers and memory directly. While firmware flashing modifies the device's software, JTAG debugging focuses on hardware validation and real-time problem analysis.
Table of Comparison
| Feature | Firmware Flashing | JTAG Debugging |
|---|---|---|
| Purpose | Install or update firmware on hardware devices | Real-time hardware debugging and device testing |
| Method | Writing firmware data into non-volatile memory | Accessing processor registers and memory via JTAG interface |
| Tools Required | Flashing software, programming cables | JTAG hardware debugger, specialized software |
| Use Case | Firmware updates, recovery, device programming | Debugging, hardware fault diagnosis, boundary scan testing |
| Complexity | Simple to moderate depending on device | Advanced, requires technical expertise |
| Speed | Faster firmware write cycles | Slower due to step-by-step debugging |
Introduction to Firmware Flashing and JTAG Debugging
Firmware flashing involves updating or installing low-level software directly onto a hardware device's non-volatile memory, ensuring the device operates with the latest firmware version. JTAG debugging uses the Joint Test Action Group interface to access and control hardware at the circuit level, enabling in-depth troubleshooting, boundary scan testing, and real-time debugging of embedded systems. Both processes are crucial for hardware development, with firmware flashing optimizing functionality and JTAG debugging enhancing error detection and system validation.
What Is Firmware Flashing?
Firmware flashing involves updating or reinstalling the low-level software programmed into a device's non-volatile memory, such as EEPROM or flash memory, to ensure optimal hardware performance and fix bugs. This process typically requires specialized tools like USB programmers or dedicated flashing software to transfer the firmware binary onto the device. Firmware flashing is crucial for embedded systems, smartphones, and IoT devices to maintain security and functionality by applying updates or restoring corrupted firmware.
What Is JTAG Debugging?
JTAG debugging is a hardware interface standard used to test and debug embedded systems by accessing and controlling the internal state of microcontrollers and processors. It provides developers with low-level access to CPU registers, memory, and peripherals, enabling real-time debugging, fault diagnosis, and system programming through boundary-scan architecture. This method is crucial for verifying hardware designs, performing in-circuit debugging, and recovering bricked devices during firmware development or flashing processes.
Key Differences Between Firmware Flashing and JTAG Debugging
Firmware flashing involves writing or updating the firmware stored in non-volatile memory of a hardware device, ensuring the device operates with the latest software instructions. JTAG debugging uses the Joint Test Action Group interface to perform boundary scans and real-time testing, enabling developers to access and control hardware registers for troubleshooting and verification. The key differences lie in firmware flashing's role in software updates versus JTAG debugging's focus on low-level hardware diagnostics and direct interaction with internal components.
Hardware Requirements for Flashing and JTAG Debugging
Firmware flashing requires a compatible programmer or flashing tool and access to the device's flash memory interface, often through SPI, USB, or UART ports. JTAG debugging necessitates a JTAG interface header on the hardware, a JTAG adapter or debugger device, and proper pin connections for boundary-scan testing and real-time control. Both methods demand stable power supply and proper grounding to prevent hardware failures during firmware updates or debugging sessions.
Step-by-Step Firmware Flashing Process
Firmware flashing involves erasing the existing firmware on a device's memory and programming the new firmware through tools like USB or serial interfaces, ensuring the device operates with updated code. The step-by-step flashing process includes connecting the device to a computer, initiating the flashing software, selecting the correct firmware file, erasing the current firmware memory, and writing the new firmware onto the device. This process requires verifying compatibility, maintaining power stability during flashing, and performing post-flash tests to confirm successful installation and device functionality.
JTAG Debugging Workflow Explained
JTAG debugging involves a serial interface connecting a hardware device's test access port to a debugger, enabling direct control over the microcontroller's internal registers and memory. The workflow typically includes initializing the JTAG interface, halting the processor, accessing system registers, reading or writing memory, and stepping through instructions to identify and fix hardware-level issues. This method offers real-time, low-level access for firmware validation and hardware troubleshooting, making it crucial in embedded system development.
Use Cases: When to Flash Firmware vs Use JTAG Debugging
Firmware flashing is essential for updating or repairing device software to ensure proper functionality and security improvements. JTAG debugging is primarily used for low-level hardware diagnosis, development, and fault isolation when the device fails to boot or requires detailed inspection of the processor and memory. Use firmware flashing for routine updates and bug fixes; employ JTAG debugging during hardware development or when deep system troubleshooting and recovery are necessary.
Pros and Cons of Firmware Flashing and JTAG Debugging
Firmware flashing offers a straightforward method to update or restore device software, ensuring improved stability and feature enhancements, but carries risks such as bricking the device if interrupted. JTAG debugging provides deep access to hardware for low-level diagnostics and real-time troubleshooting, enabling precise fault isolation, though it requires specialized knowledge and equipment, making it less accessible for general users. Both methods play crucial roles in hardware maintenance, with firmware flashing favoring simplicity and updates, while JTAG excels in development and intricate problem-solving.
Choosing the Right Method for Your Hardware Project
Firmware flashing streamlines updating embedded device software by directly writing new code to memory, suitable for routine updates and broad deployment. JTAG debugging provides in-depth access to a device's internal signals, enabling thorough troubleshooting and testing during development. Selecting the right method depends on project phase, device accessibility, and complexity of required hardware diagnostics.

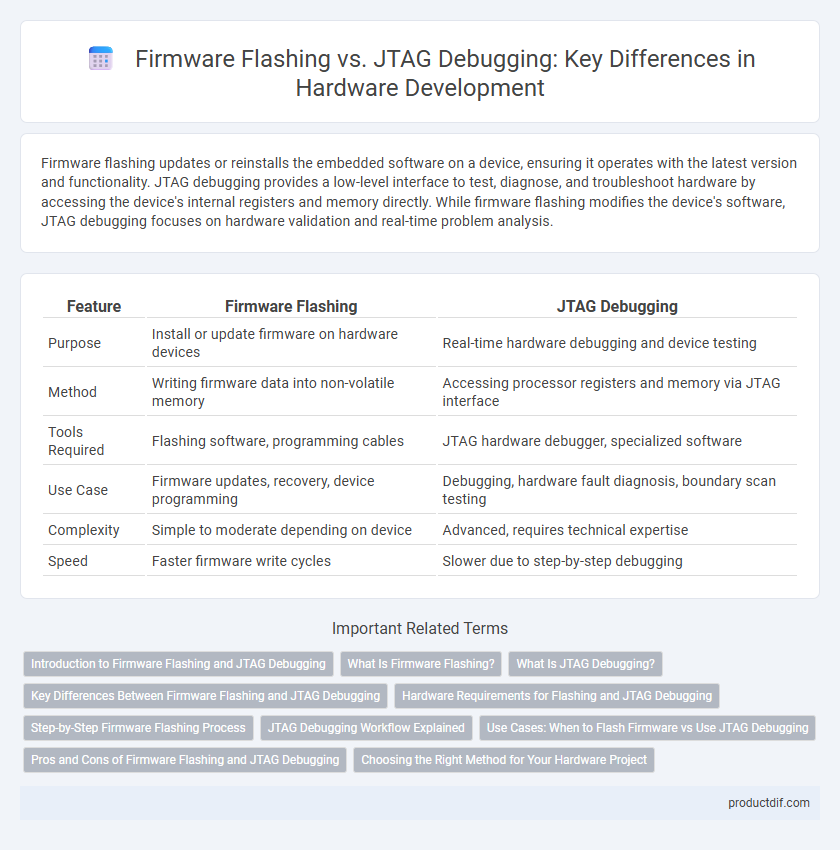

Firmware Flashing vs JTAG Debugging Infographic
