productdif.com Single-ended signaling transmits data using one wire with a reference ground, making it simpler but more susceptible to noise and interference, which can degrade signal quality over long distances. Differential signaling uses two complementary signals on paired wires, enhancing noise immunity and signal integrity by allowing the receiver to detect the voltage difference, effectively canceling out external noise. This makes differential signaling ideal for high-speed communication and environments with significant electromagnetic interference.
Table of Comparison
| Feature | Single-ended Signaling | Differential Signaling |
|---|---|---|
| Signal Reference | Signal referenced to ground | Signal transmitted as voltage difference between two complementary lines |
| Noise Immunity | Low; susceptible to electromagnetic interference (EMI) | High; cancels common-mode noise |
| Signal Integrity | Degrades with distance and frequency | Maintains integrity over long distances and high frequencies |
| Power Consumption | Lower power consumption | Higher power consumption due to dual lines |
| Cable and Connector Cost | Lower cost using single conductor | Higher cost due to twisted pair or balanced cables |
| Common Applications | Audio signals, simple digital circuits | High-speed data transmission, USB, Ethernet, LVDS |
| Data Rate Capability | Limited by noise and crosstalk | Supports higher data rates with reduced error rates |
Introduction to Single-ended and Differential Signaling
Single-ended signaling transmits electrical signals using one wire referenced to a common ground, making it simpler but more susceptible to noise and interference. Differential signaling uses two complementary signals sent over paired wires, enhancing noise immunity by allowing the receiver to detect the voltage difference. This method is critical in high-speed data communication and environments with significant electromagnetic interference (EMI).
Basic Principles of Signal Transmission
Single-ended signaling transmits a signal over one conductor referenced to a common ground, making it susceptible to noise and electromagnetic interference. Differential signaling uses two complementary signals transmitted over a pair of conductors, allowing the receiver to detect the difference between them and reject common-mode noise. This method enhances signal integrity and is commonly employed in high-speed data communication and noise-sensitive environments.
How Single-ended Signaling Works
Single-ended signaling transmits data using one signal wire referenced to a common ground, where the voltage level on the signal wire varies to represent binary states. The receiver interprets the voltage difference between the signal line and ground to determine the logic level, making it simpler but more susceptible to noise and electromagnetic interference (EMI). This method is commonly used in low-speed, short-distance communication due to its straightforward design and lower hardware complexity.
Advantages of Single-ended Signaling in Electronics
Single-ended signaling offers simplicity in design and lower cost due to requiring fewer components and reduced wiring complexity. This signaling method consumes less power and is easier to implement for short-distance communication within electronic circuits. It is particularly effective in low-speed, low-noise environments where signal integrity is less critical.
Fundamentals of Differential Signaling
Differential signaling uses two complementary voltage signals transmitted over a pair of conductors, enhancing noise immunity by allowing the receiver to detect the difference between the signals rather than their absolute values. This fundamental approach reduces susceptibility to electromagnetic interference (EMI) and crosstalk compared to single-ended signaling, where a single voltage reference is used against a common ground. Differential signaling is essential in high-speed communications and precision analog measurements because it improves signal integrity and system reliability.
Benefits of Differential Signaling for Noise Immunity
Differential signaling significantly enhances noise immunity by transmitting two complementary signals that allow common-mode noise to be canceled out at the receiver. This method reduces electromagnetic interference (EMI) and crosstalk, improving signal integrity over long distances and in electrically noisy environments. As a result, differential signaling is essential in high-speed data communications and precision analog measurements.
Power Consumption: Single-ended vs Differential Signaling
Single-ended signaling typically consumes less power due to its simpler circuitry and fewer components compared to differential signaling. Differential signaling, while more power-intensive, offers superior noise immunity and signal integrity, especially in high-speed data transmission over long distances. Power consumption in differential signaling increases because both lines actively drive complementary signals, leading to higher current usage.
Applications of Single-ended and Differential Signaling
Single-ended signaling is commonly used in low-frequency, short-distance applications such as audio signals, microcontroller communication, and basic sensor interfaces where simplicity and cost-effectiveness are crucial. Differential signaling excels in high-speed data transmission and noisy environments, making it ideal for USB, Ethernet, HDMI, and PCIe interfaces that demand noise immunity and signal integrity. Single-ended systems dominate in consumer electronics with moderate performance needs, while differential signaling is preferred in industrial, automotive, and telecommunications systems requiring robust communication.
Design Considerations in Choosing Signal Methods
Design considerations for single-ended signaling focus on simplicity and lower cost, making it suitable for short-distance transmission with minimal interference. Differential signaling is preferred for high-speed or long-distance communication due to its superior noise immunity and reduced electromagnetic interference (EMI). Engineers weigh factors such as signal integrity, power consumption, and PCB layout complexity to determine the optimal signal method for specific electronic applications.
Future Trends in Electronic Signal Transmission
Future trends in electronic signal transmission emphasize increased adoption of differential signaling due to its superior noise immunity and reduced electromagnetic interference (EMI) in high-speed data communication. Advances in semiconductor technology and materials enable more efficient low-voltage differential signaling (LVDS) and current-mode logic (CML) circuits, supporting faster data rates and lower power consumption. Emerging applications like 5G, automotive radar, and high-frequency trading rely on differential signaling to meet demanding signal integrity and latency requirements, shaping the evolution of electronic communication protocols.

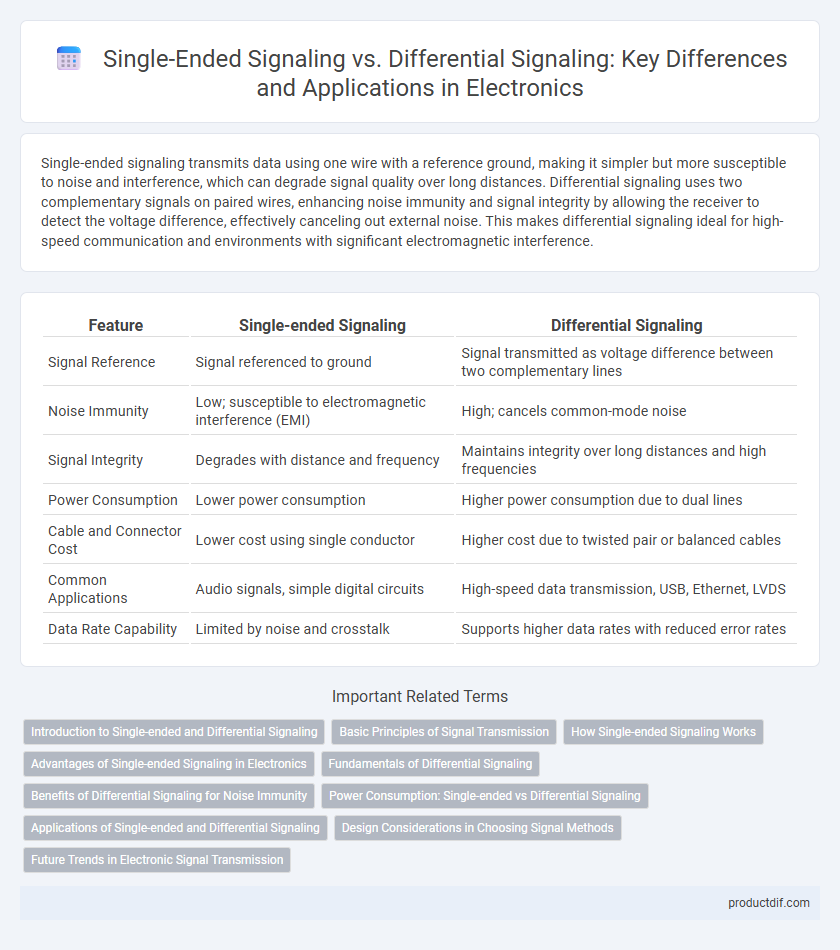

Single-ended Signaling vs Differential Signaling Infographic
